Introduction
In this part of IMC analysis, we will focus on cell segmentation using popular tools QuPath and ImageJ with the Mesmer plugin. Accurate cell segmentation is crucial for downstream analysis, as it allows us to quantify marker expressions at the single-cell level.
To be able to follow this tutorial, please ensure you have the following software installed:
- Qupath 0.6.0: https://qupath.readthedocs.io/en/stable/index.html
- ImageJ: https://imagej.net/ij/
- DeepCell ImageJ plugin: https://github.com/vanvalenlab/kiosk-imageJ-plugin
For this tutorial, we will be using the 35-marker IMC panel on FFPE
human intestines. The paper describing the data:
https://doi.org/10.1002/cyto.a.24847. The panel is designed
to delineate various immune cell subsets and HIV RNA.
The data can be downloaded either from the Google drive link in the setup page or from Zenodo.
Preparing Tif files for segmentation
The dataset is provided as single channel tiff files for each marker. Hence when you download the data, you will get a folder structure like this:
imc
└──tif_files
└── originalimages
├── aSMA.tif
├── Axl.tif
├── CCR6.tif
└── ...As previously mentioned in the introduction, we generally use membrane/cytoplasm and nuclei markers for segmentation. For this dataset, we will use 3 membrane markers: CD45, E-cadherin, and NaKATPase. For nuclei, we will use DNA1.
Merging membrane markers using ImageJ
We will first prepare the merged membrane marker using ImageJ.
First, open CD45.tif, Ecadherin.tif,
NaKATPase.tif in ImageJ. One window per image.

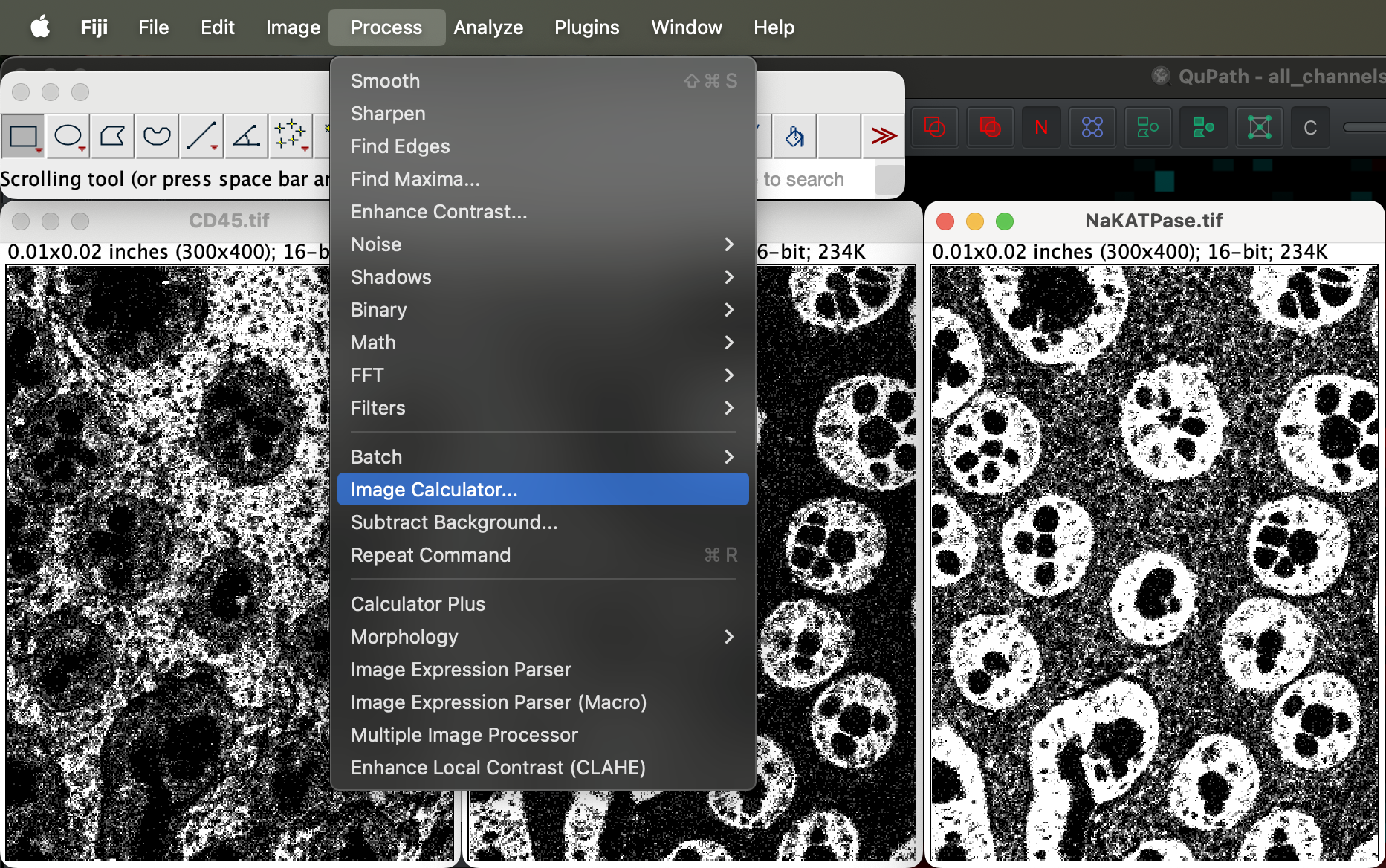

Go to Process → Image Calculator to add the channels in order.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Select image 1 as the CD45 and Ecadherin as image 2. You will then get a new window called Result of CD45 as a result.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Save it as CD45_Ecadherin.tif somewhere in your
computer.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

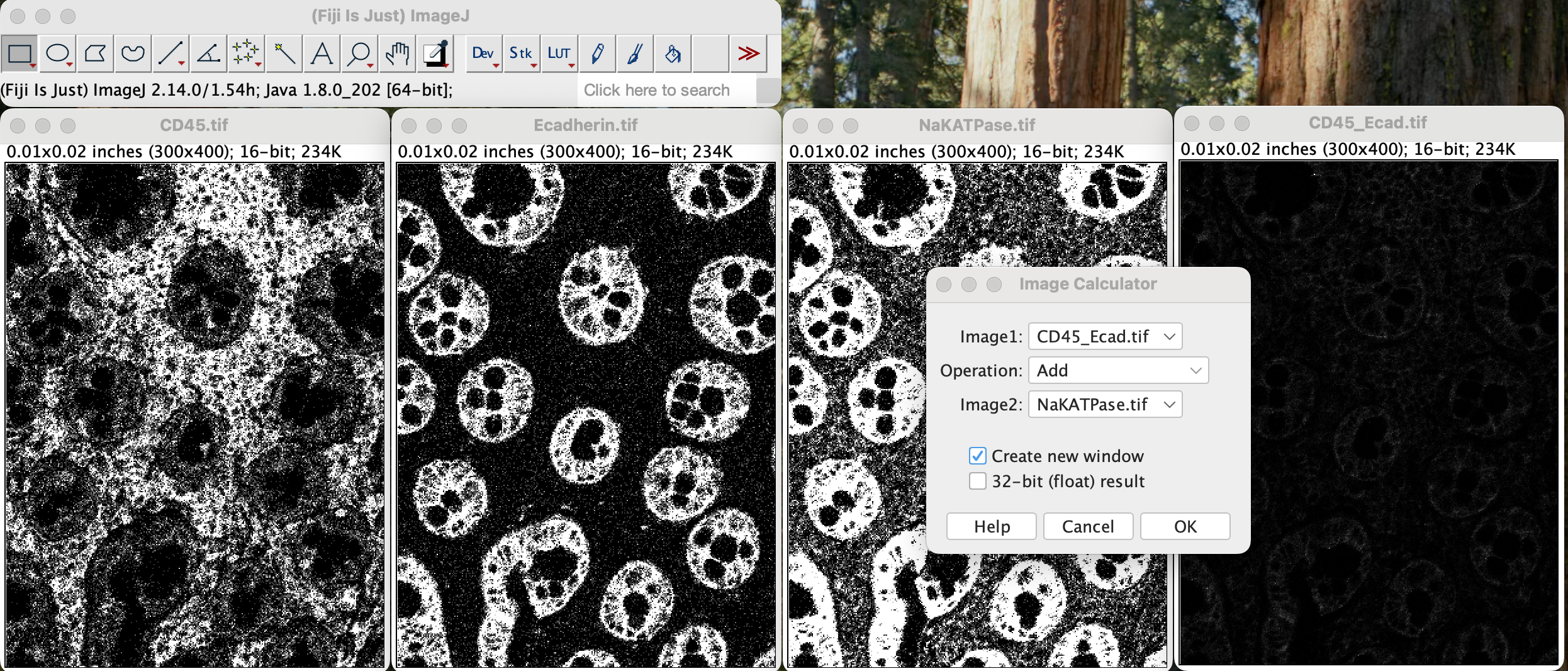

Repeat the process but select CD45_Ecadherin.tifas image
1 and NAKatPase as image 2.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

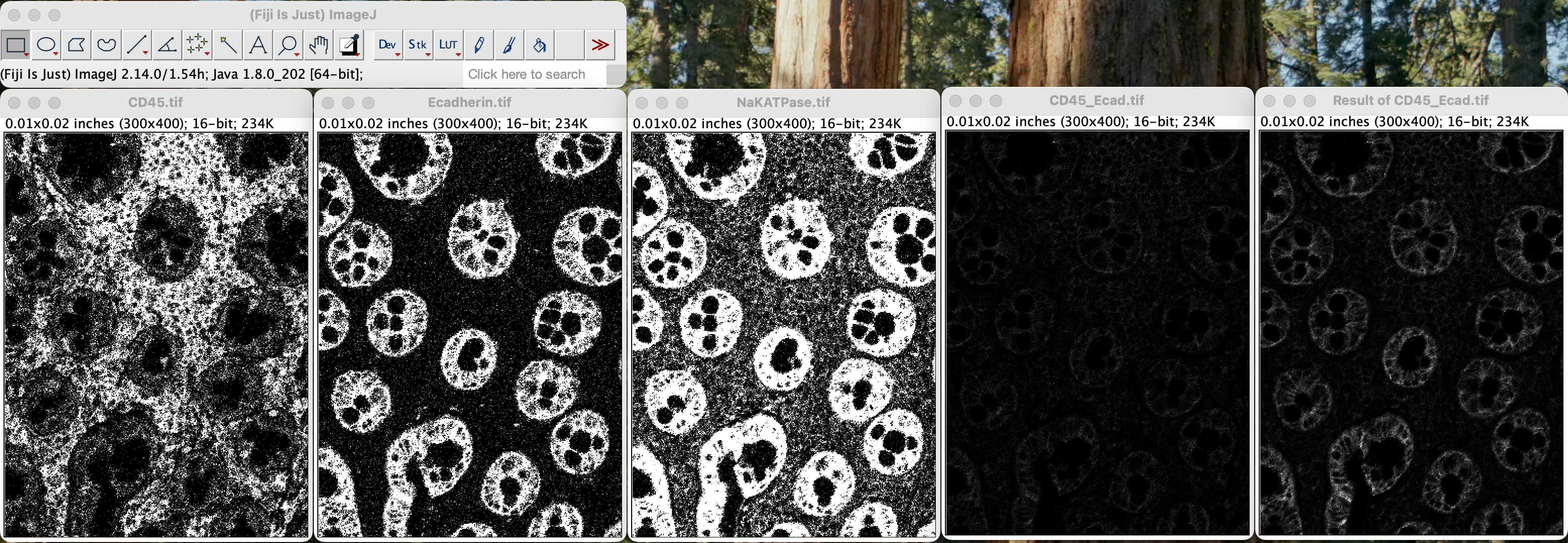

You will get a new window called Result of CD45_Ecad.tif
window.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

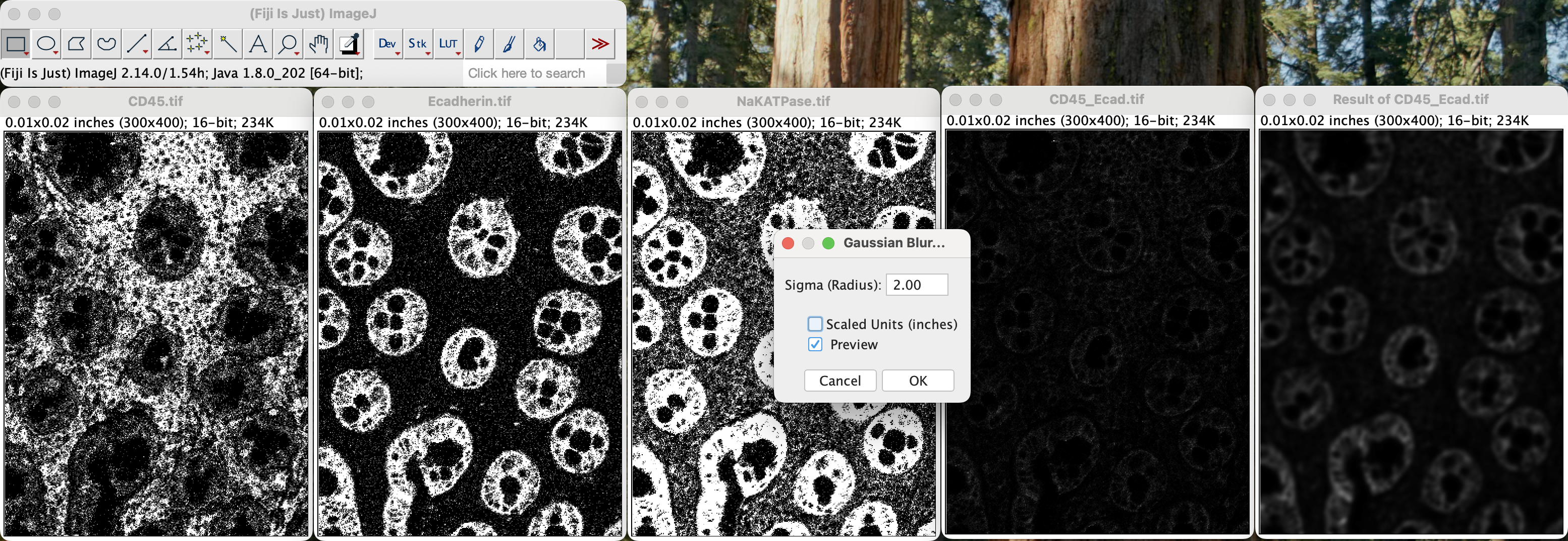

Add a small amount of gaussian blur to reduce noise. Gaussian blur will diffuse the image slightly, which will cause pixels with low expression of membrane markers to appear more diffuse. By making these pixels less distinct, we can help prevent them from being mistakenly identified as part of a cell membrane.

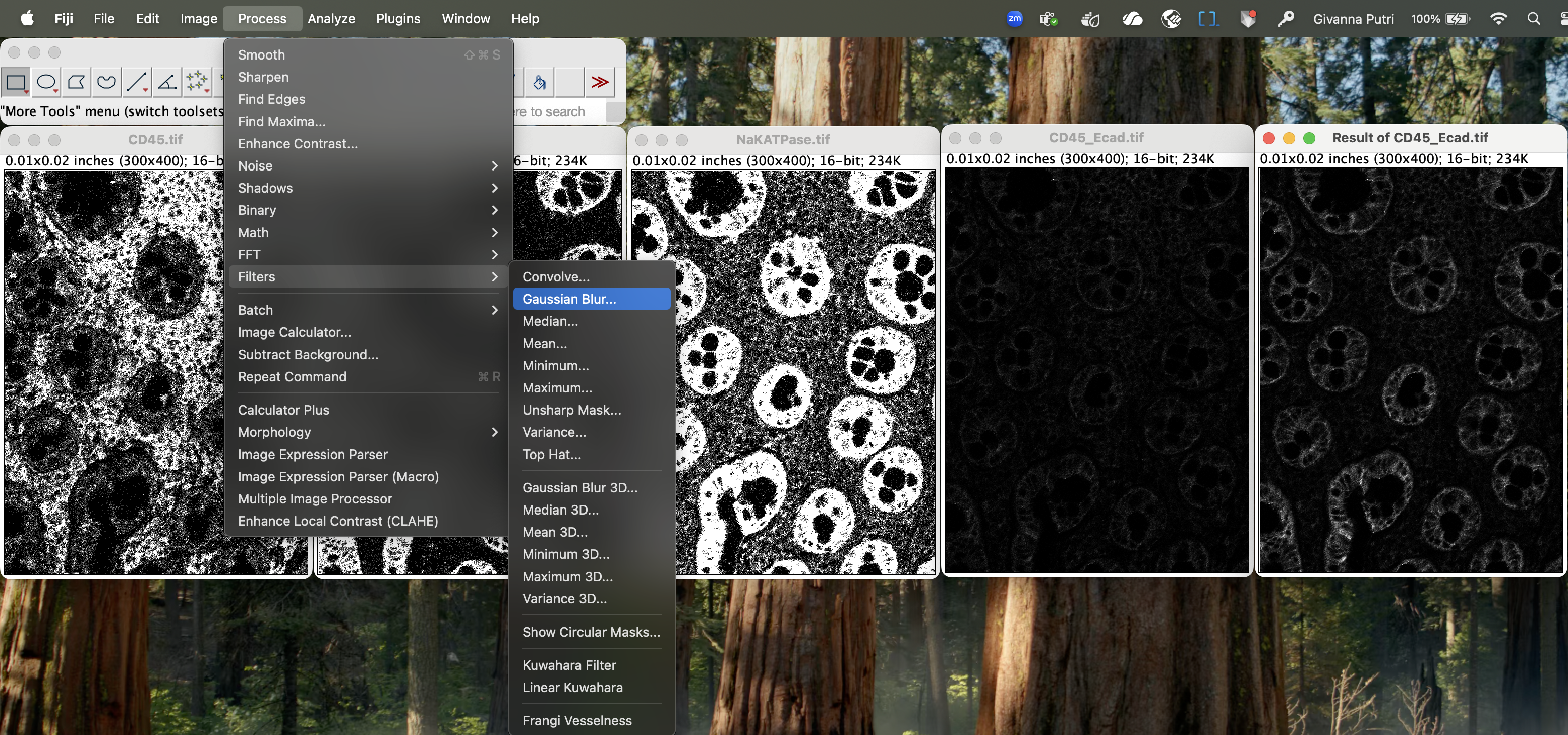

Go to Process → Filters → Gaussian Blur with small sigma (1–2 px).
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
You can tick the “Preview” checkbox to see what the resulting image will look like after applying certain sigma values. The lower the sigma value, the less blurring there will be.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Then save the image as membrane_channel_combined.tif
Creating stack tiff files
Before sending the tif file to mesmer for segmentation, we need to first create a stack tif file containing the DNA1 tif file and the merged membrane channel tif file we created in the previous section.

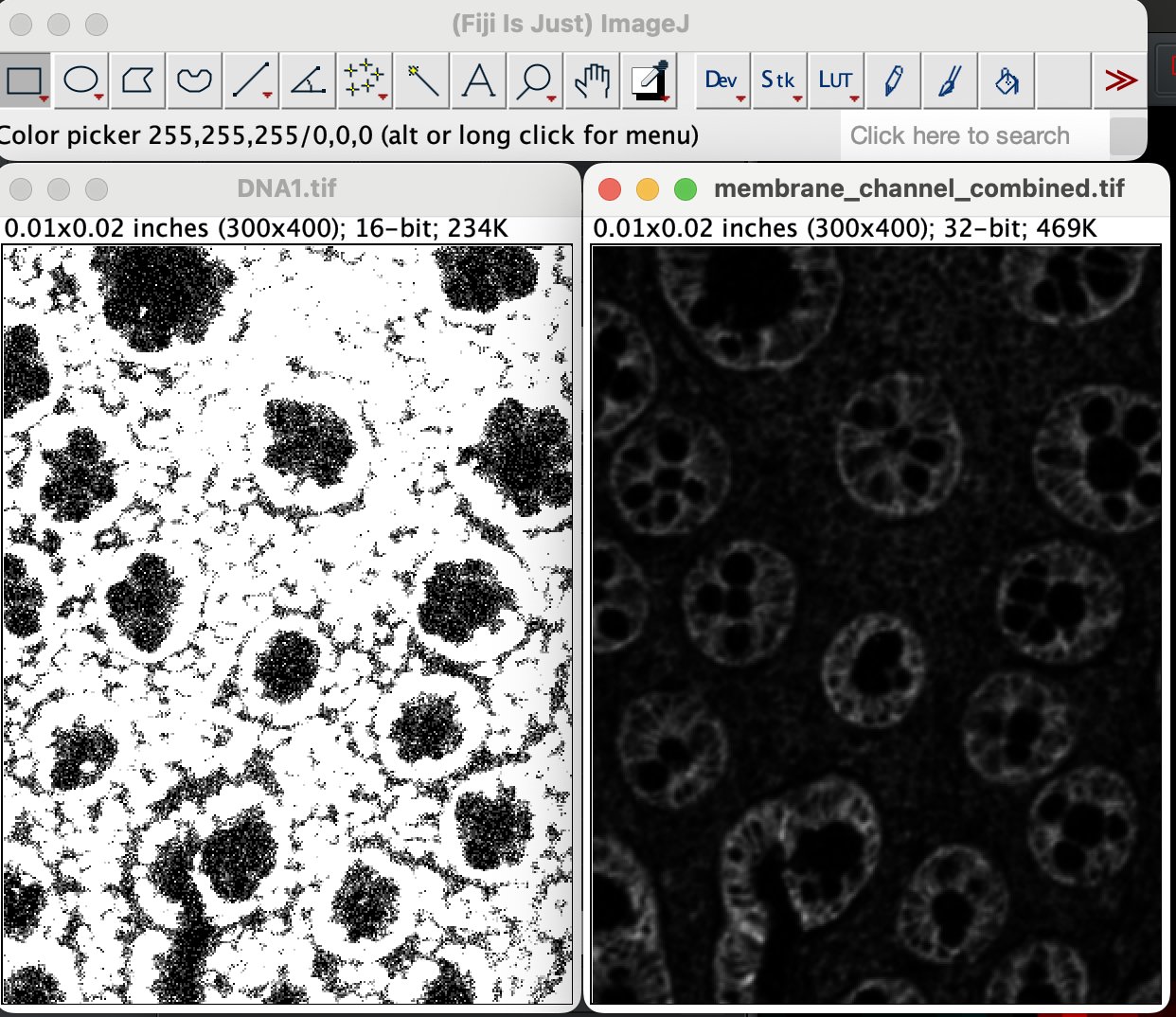

First open the DNA1 image and the merged membrane channel tif file in that order. The order is important because Mesmer require the nuclei stain to be the very 1st layer, followed by the membrane layer. Opening the DNA1 first will allow us to specify the DNA channel as as the very 1st layer, followed by the membrane channel.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

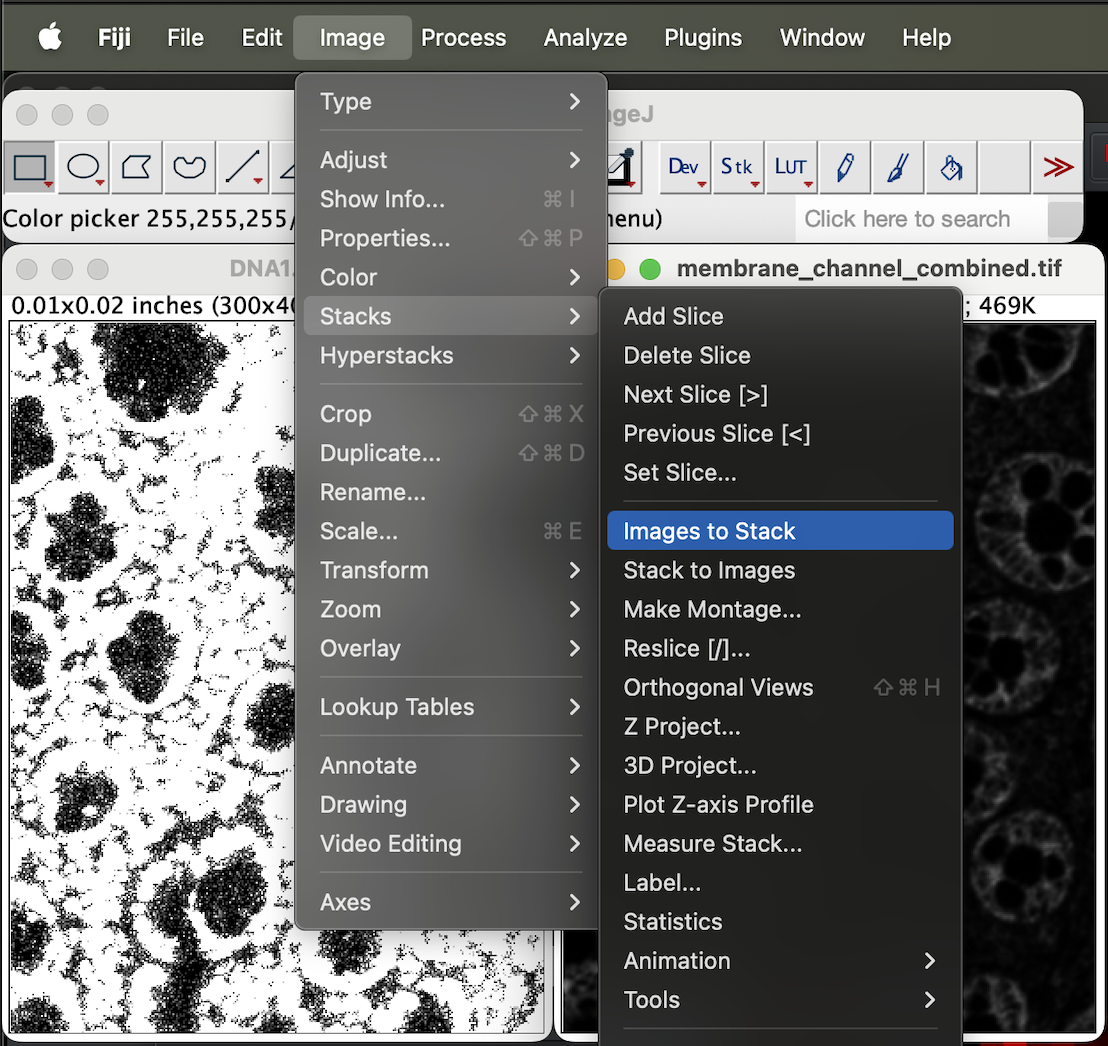

Next, go to Image → stacks → Image to Stack.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

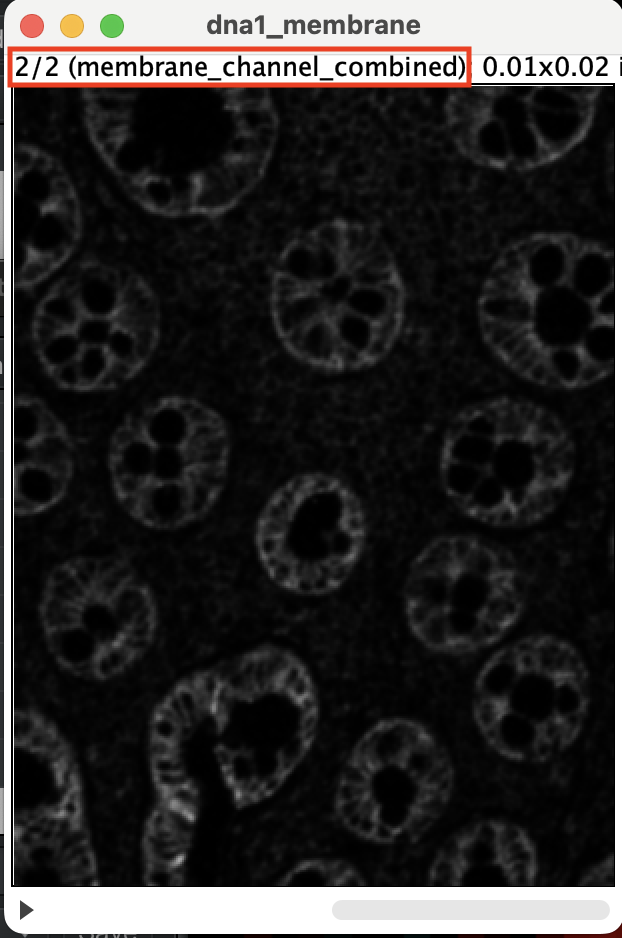

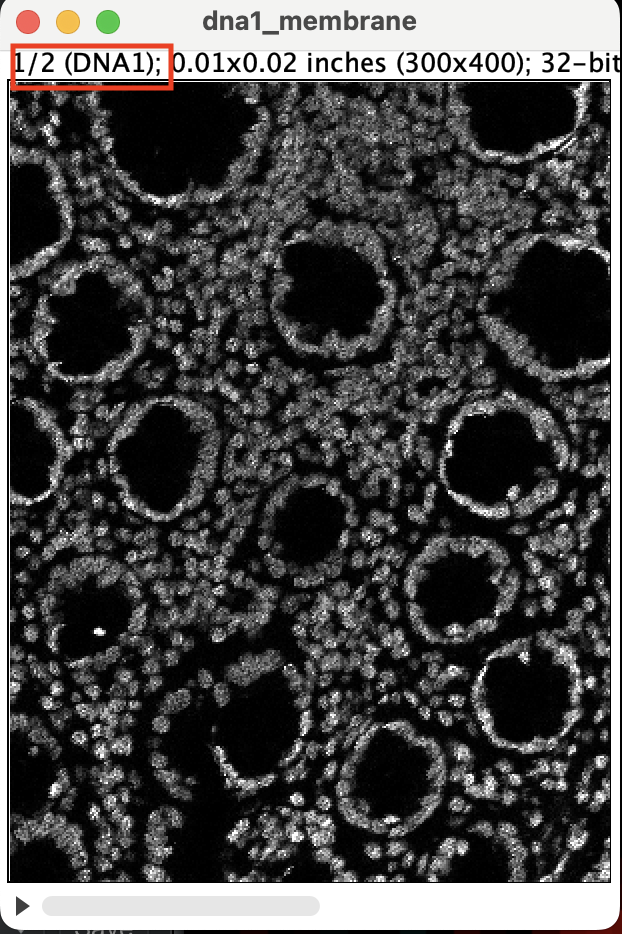

You should get a stacked image. Make sure stack 1 of 2 is DNA1 and
stack 2 is the membrane channel. You can flick through the stack using
the left and right arrow key. If the stacks are ordered correctly, you
should see 1/2 next to the DNA1 and 2/2 next to
membrane_channel_combined.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Save the image, use any file name.
Segmentation using Mesmer
Now we are ready to send our file to DeepCell server to be segmented.

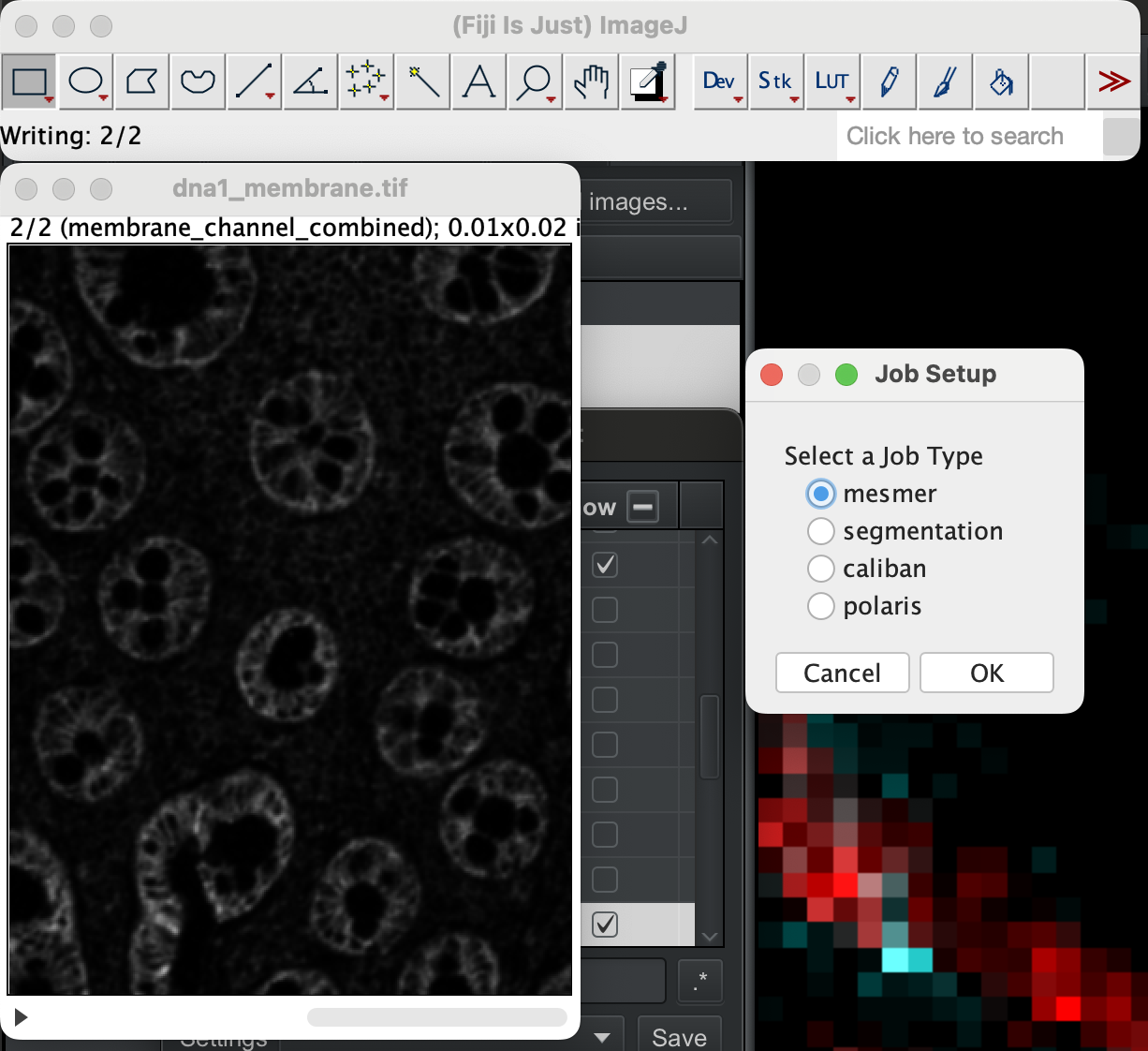

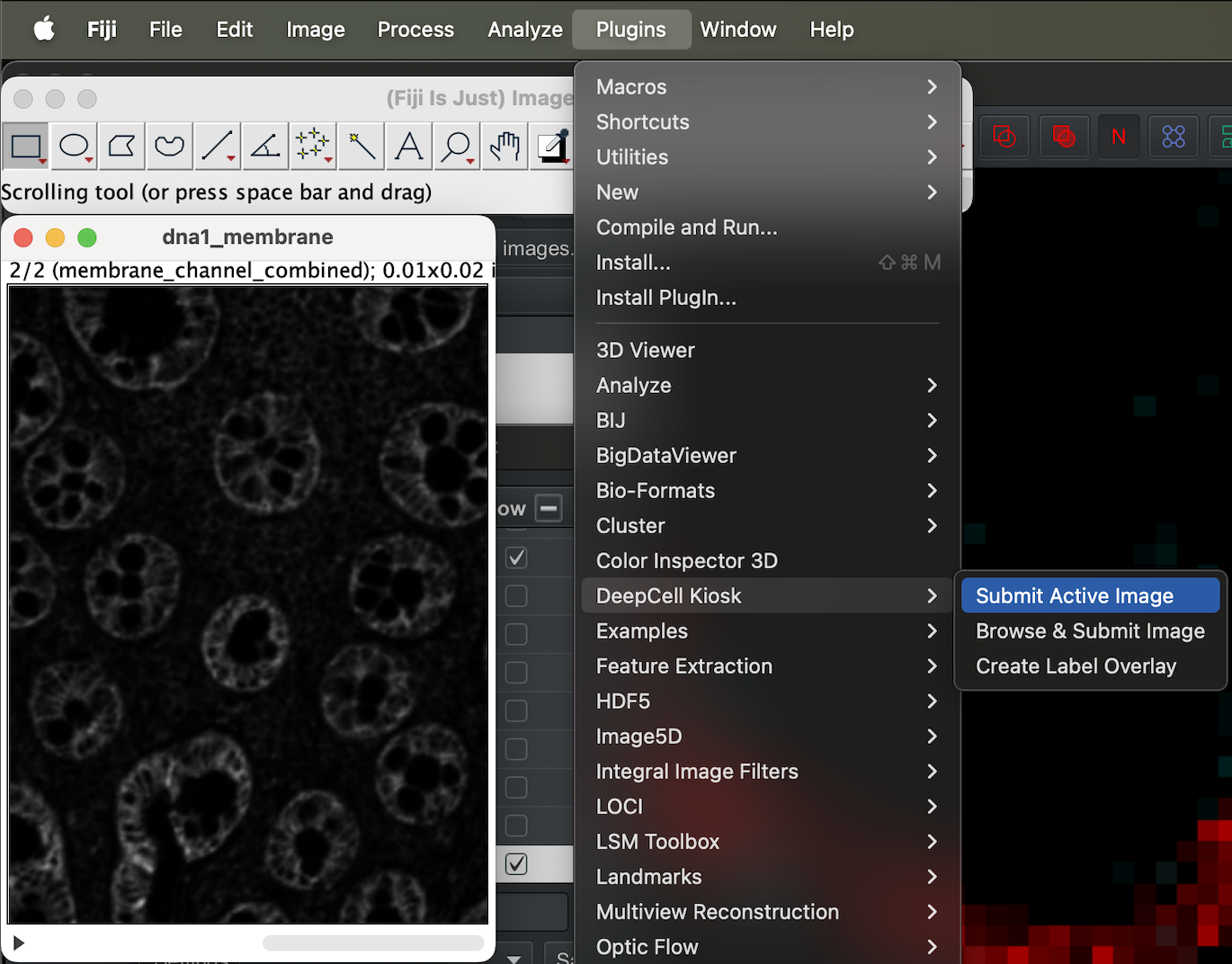

With the stack image open, select the image, then go to Plugin → DeepCell Kiosk → Submit Active Image.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

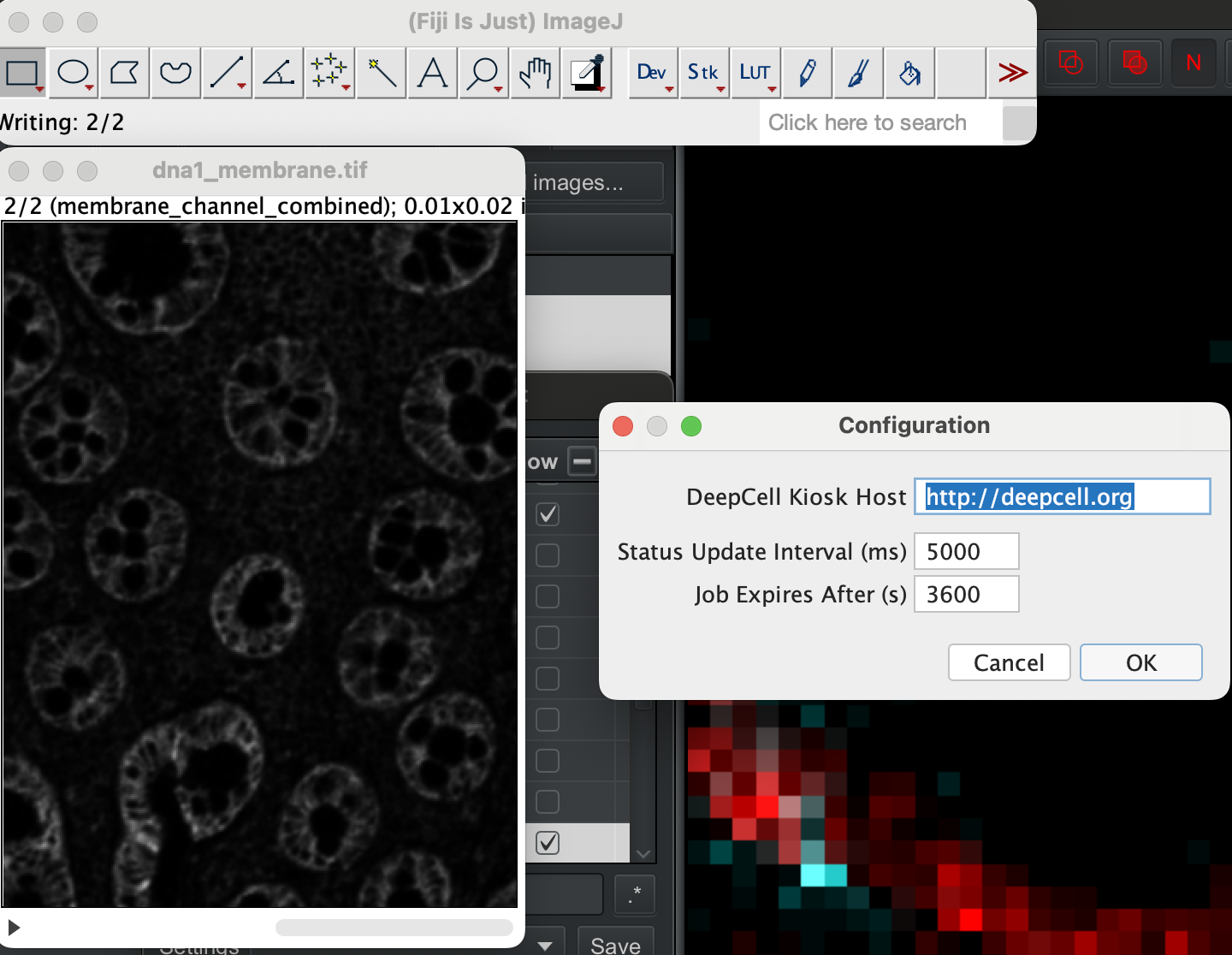

You can leave the config as it is and just click ok.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

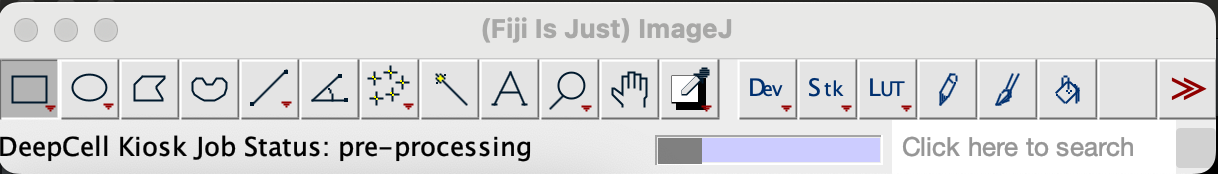

On the menu bar you should see a progress bar showing the status.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

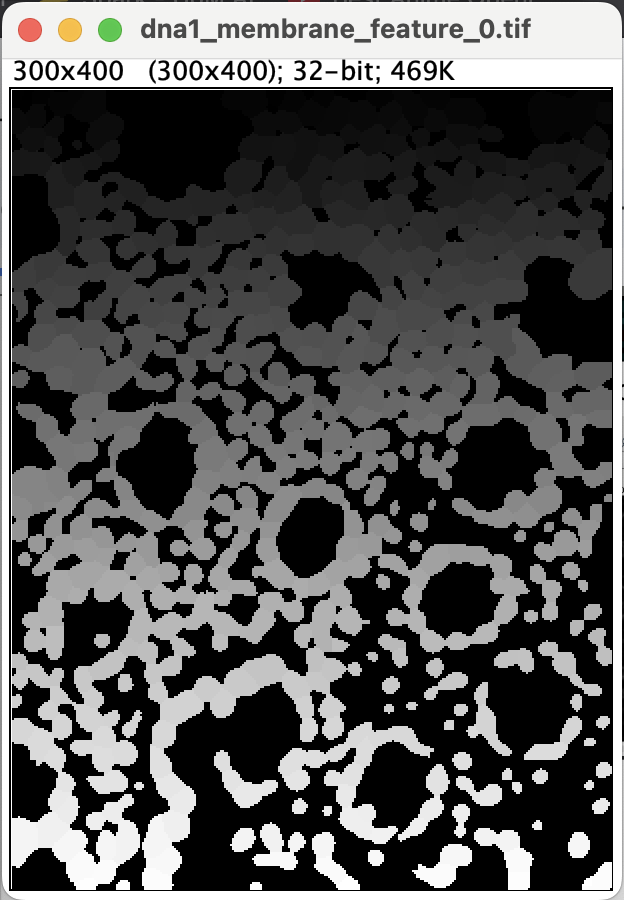

When it is done you should get the segmentation mask.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

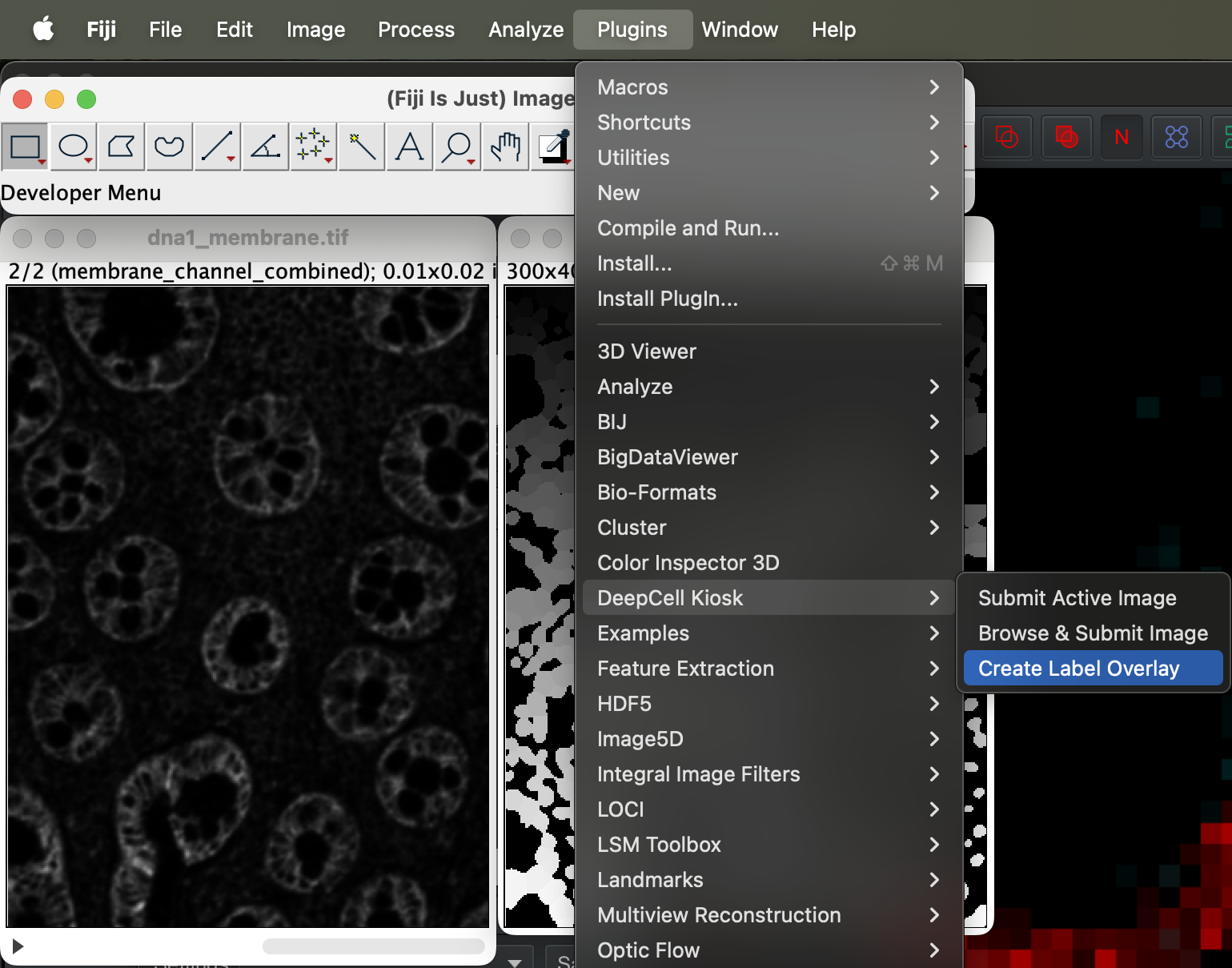

Before we can import the segmentation to Qupath for closer inspection, we have to first generate the label overlay. Go to Plugin → DeepCell Kiosk → Create label overlay.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

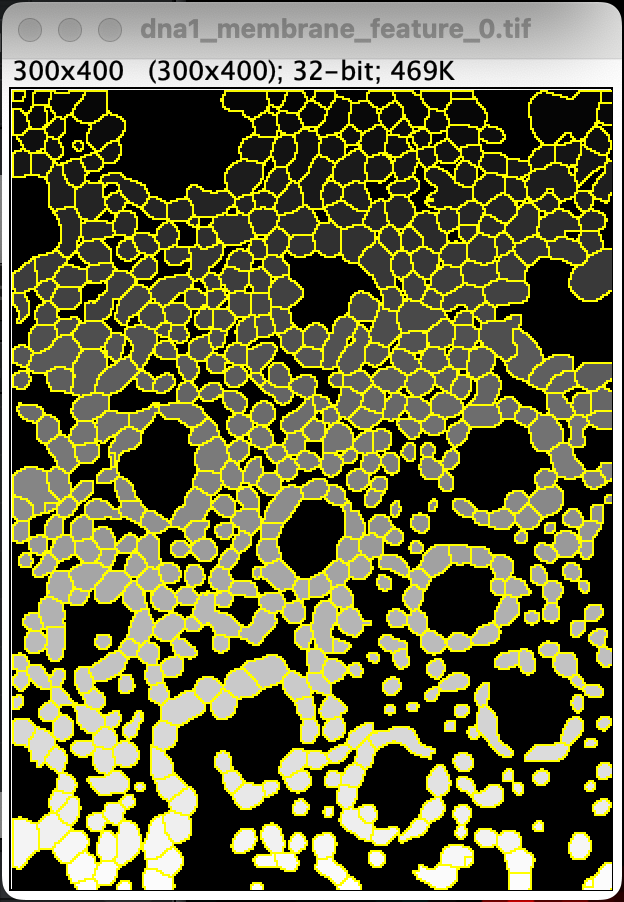

Once it is done you will get the cell outlines like so.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

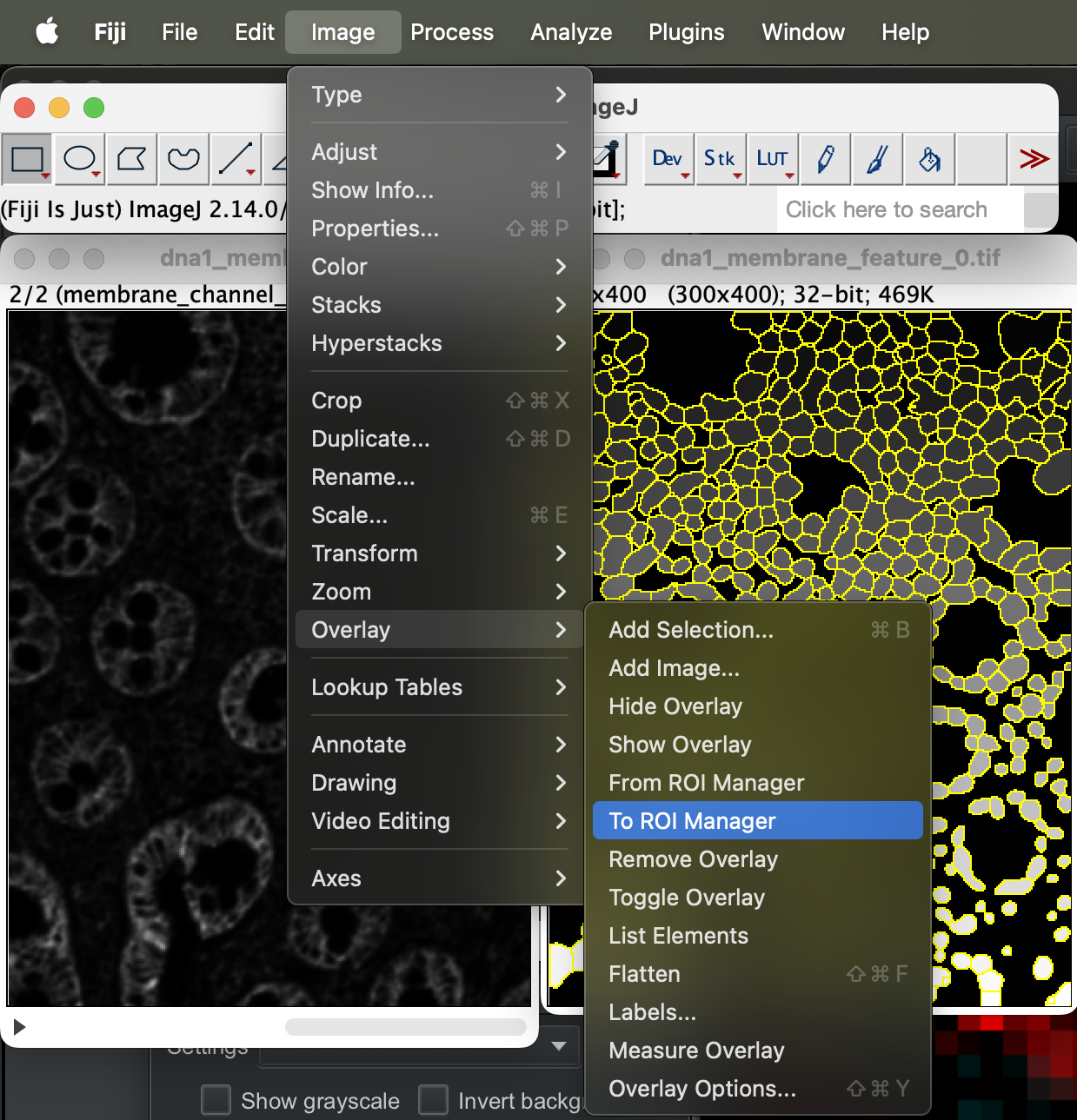

You can then export it by going to Image → Overlay → To ROI manager.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

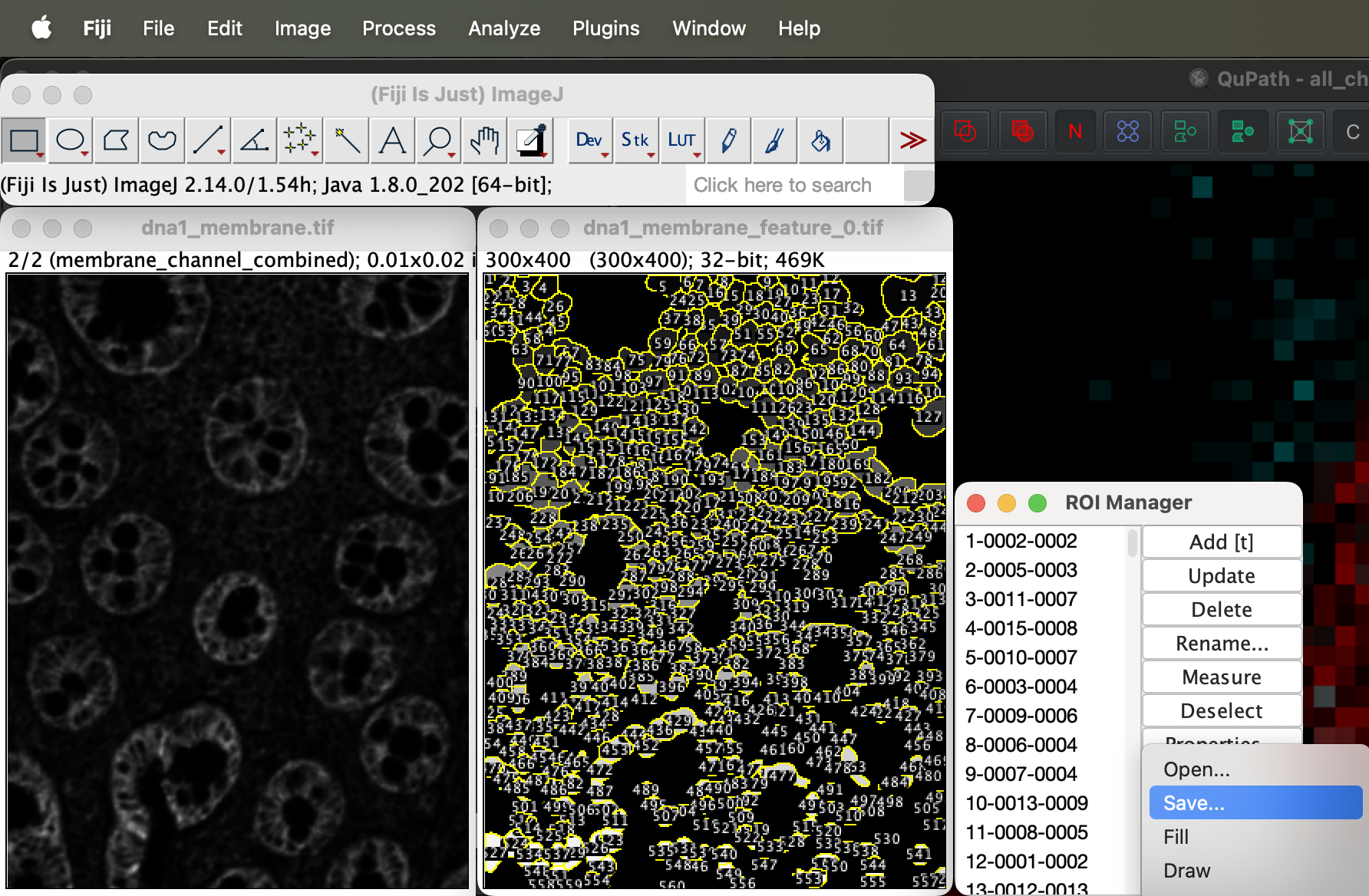

Select more at bottom right of the window then save.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
It should export the ROI as a zip file.
Visualising tissue using QuPath
Before we can view all the channels in QuPath, we need to first convert all the single channel tif files (1 channel = 1 tif file) into one stack image and save it.
Creating stack tif file
We can do this using ImageJ.

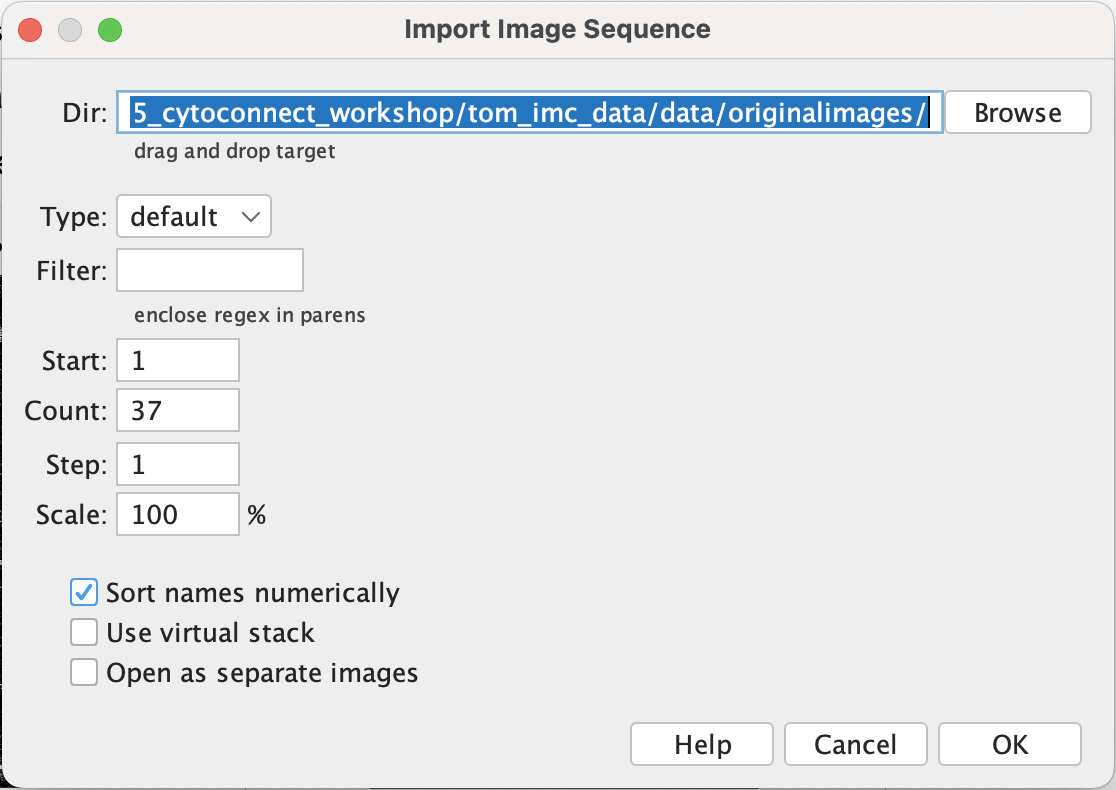

Go to File → Import → Image Sequence. Click browser to select the folder containing all the tif files and click ok.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

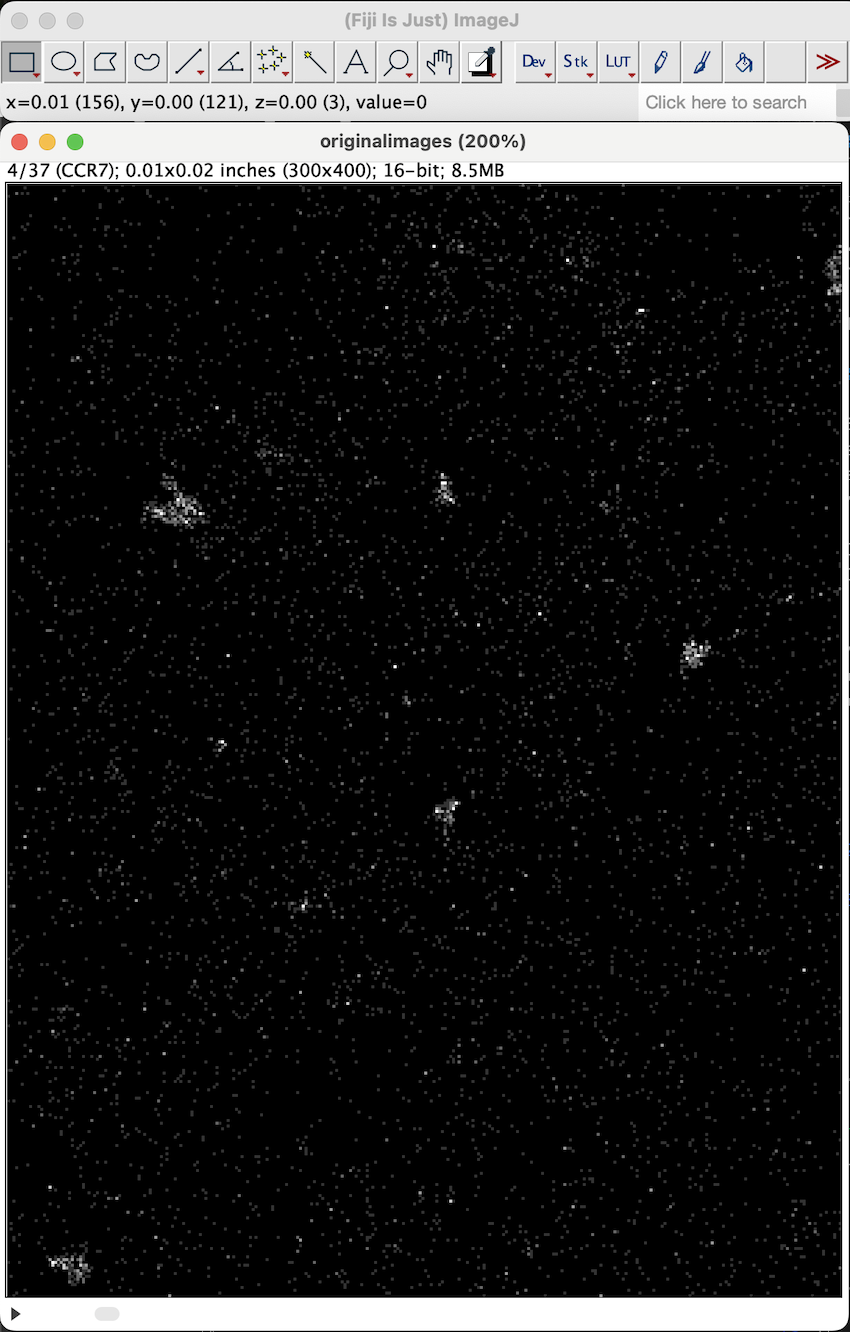

When done, you should have an image with 37 channels. You can switch between different channels using the left and right arrow keys. You can also zoom in and out of the image using the up and down arrow keys respectively.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

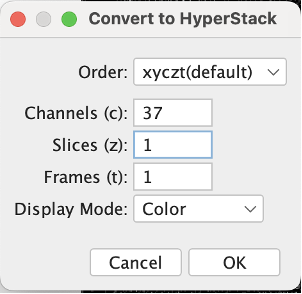

We have to then convert it to hyperstack. Go to Image → Hyperstacks → Stack to Hyperstack.
Set the channels to how many markers you have (37 in this dataset) and slice to 1. Leave the order as it is as that’s how qupath likes it.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Then save as tiff file.
Interacting with the tif file using QuPath

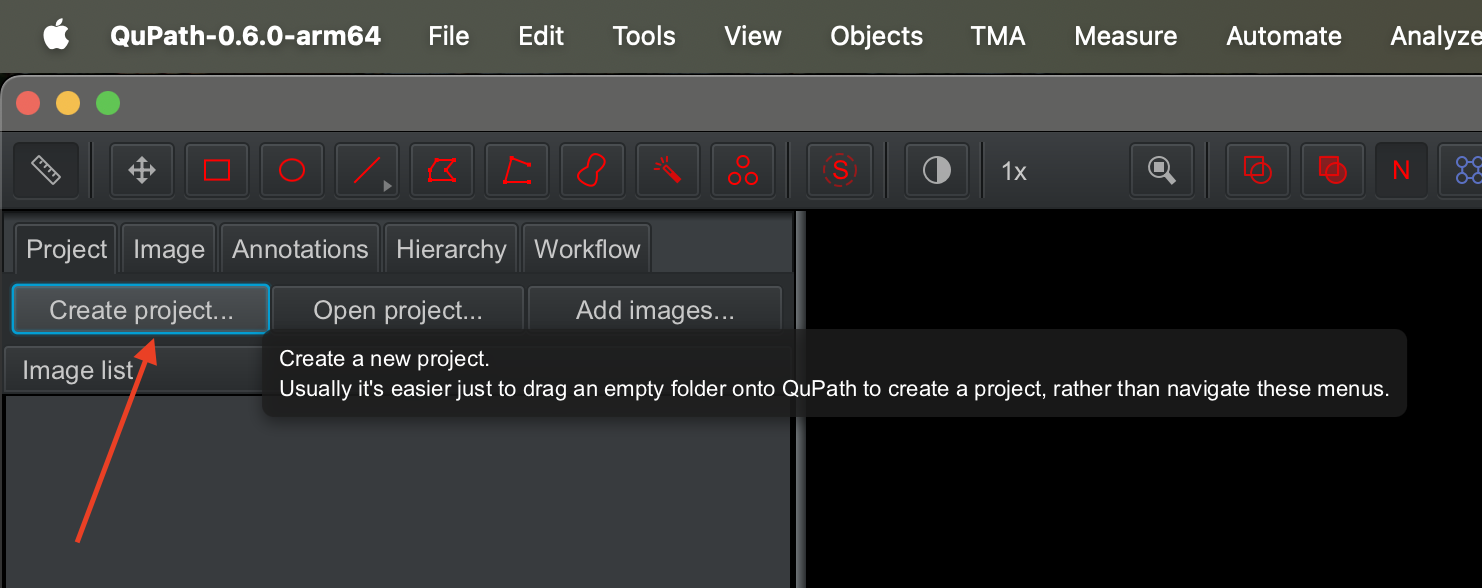

Create a qupath project by clicking on the
create project... button on the right.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Pick where you want to store the files associated with the project.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

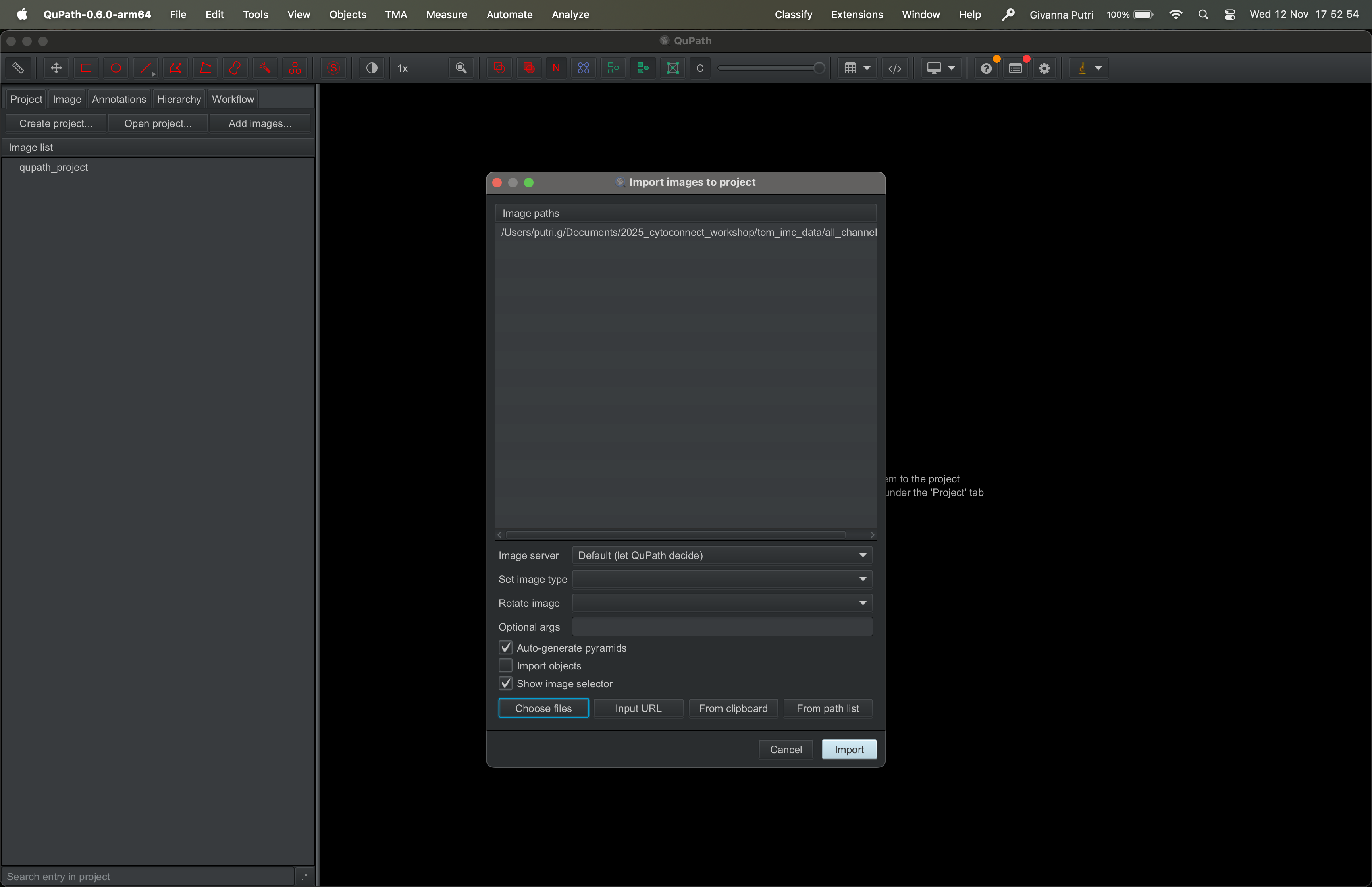

You will then be asked to add images to the QuPath project. Click
Choose files and select the directory where you store the
tif stack tif file we created in the previous section. Then click
import.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

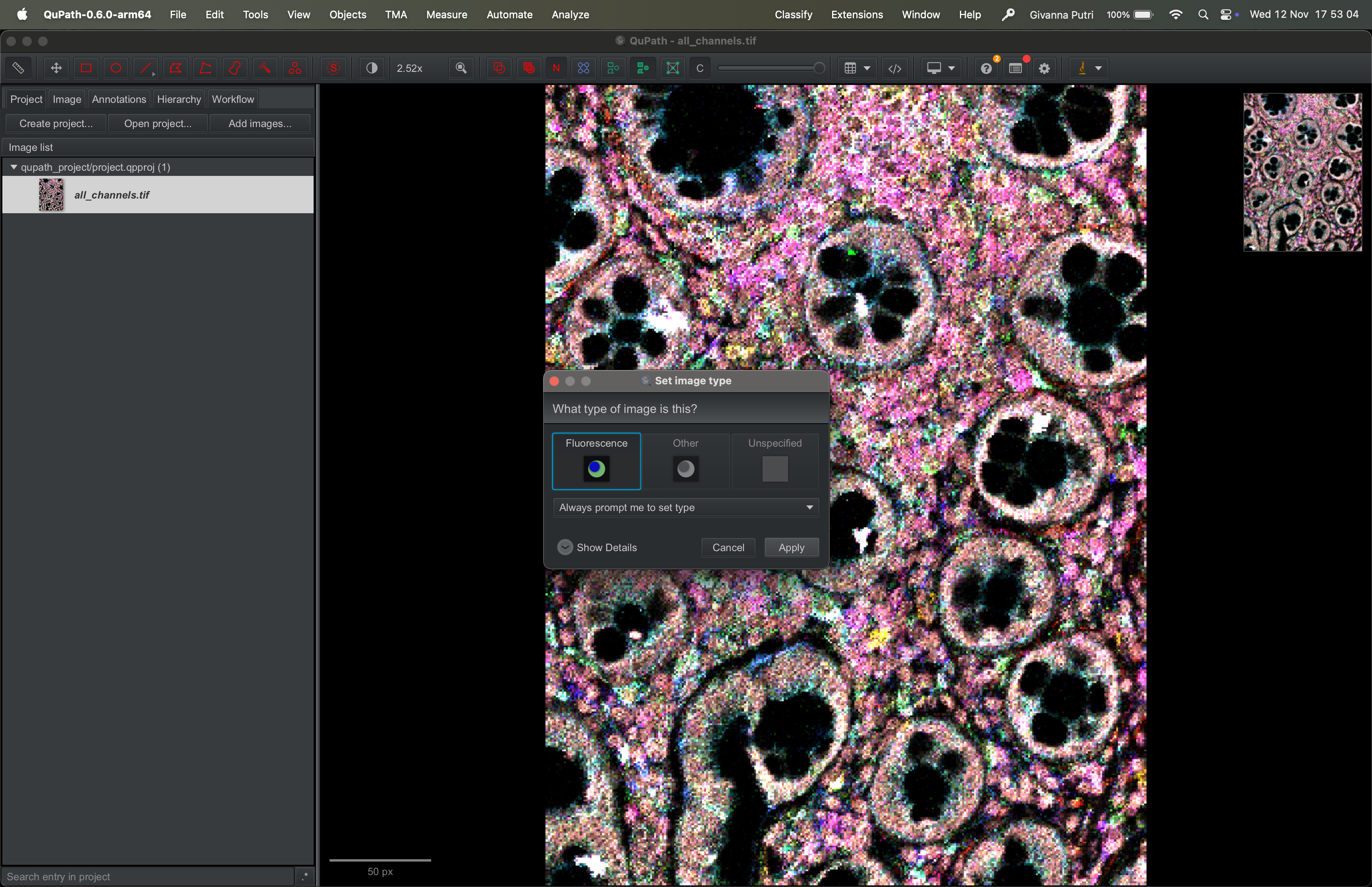

Qupath will ask you what type of image this is. Its guesses are generally pretty accurate.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
By default, it will show all the channels and there will be overlaps in colours.

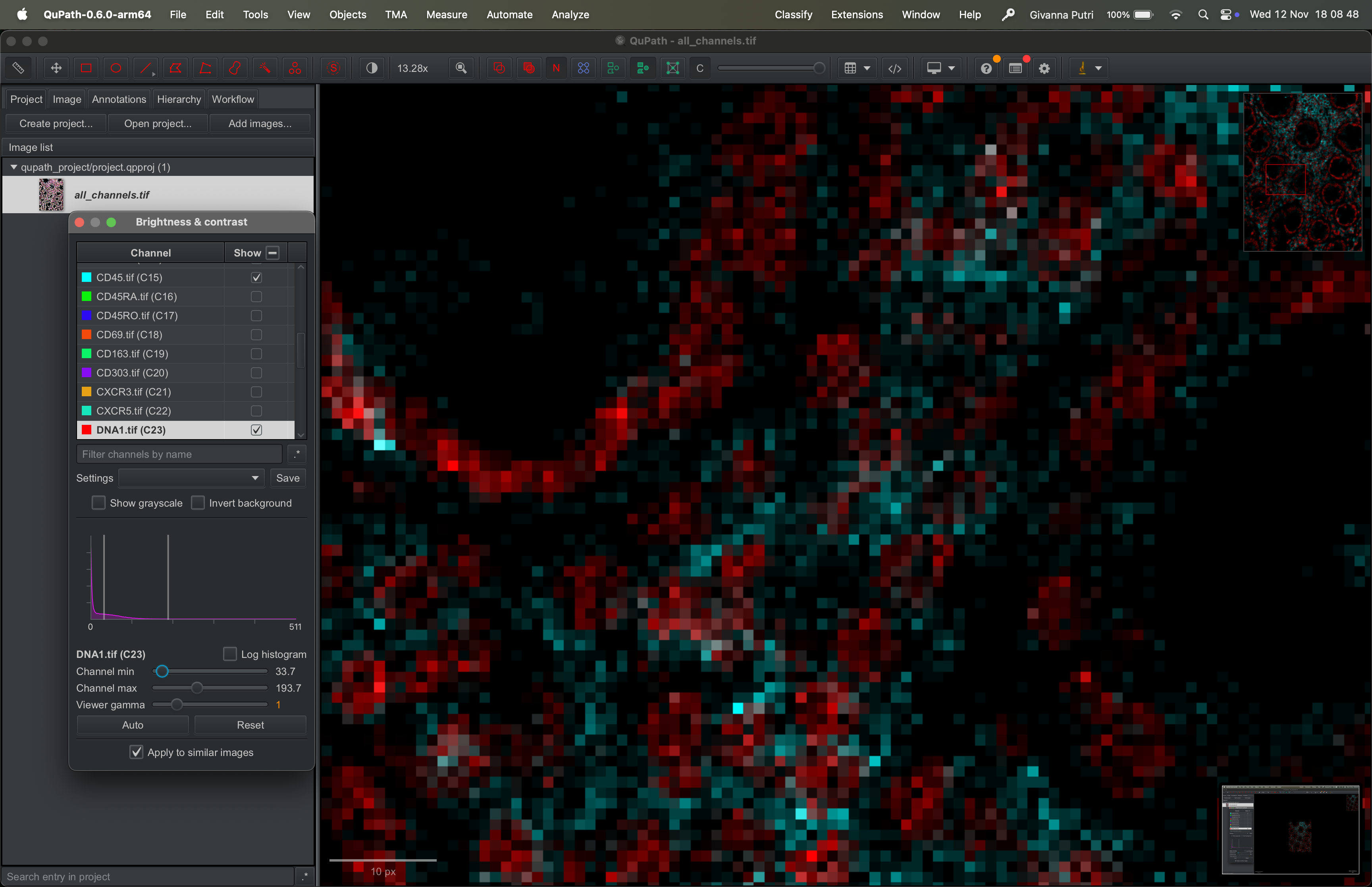

To pick which channel to show, go to View → Brightness/Contrast. Untick all channels, then tick whichever you want to show. In example below, I picked DNA1 (red) and CD45 (turquoise).
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

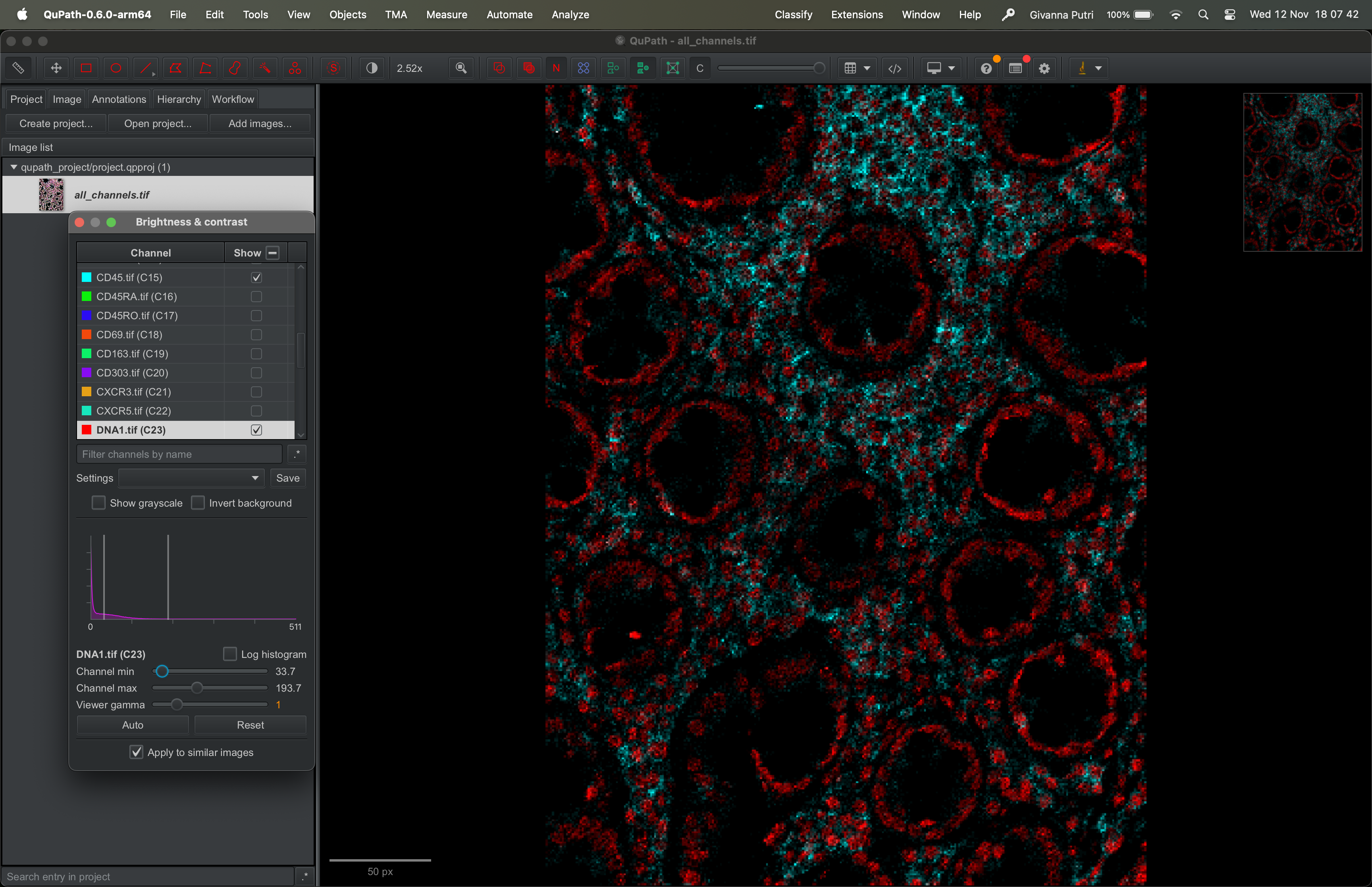

When you view a stack image (DNA1 and CD45 in the example above), each channel is shown with its own intensity range. The range is usually from the minimum pixel value to the maximum pixel value.
If a channel has very bright signal (like DNA1 in our example above), it can visually dominate the display. We can reduce its apparent brightness by changing how QuPath maps pixel intensities to display brightness.
You can either move the max slider to the right, which tells qupath any value larger than this threshold will be “whiter”. Or move the min slider to the right, which tells qupath to exaggerate the contrast.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
This doesn’t change your data — it just changes how it’s visualized.
You can zoom in and out of the image by scrolling on the image up or down. The scale of the zoom is showed on the bottom left of the image.
Zoom out:
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Zoom in:
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Importing segmentation masks

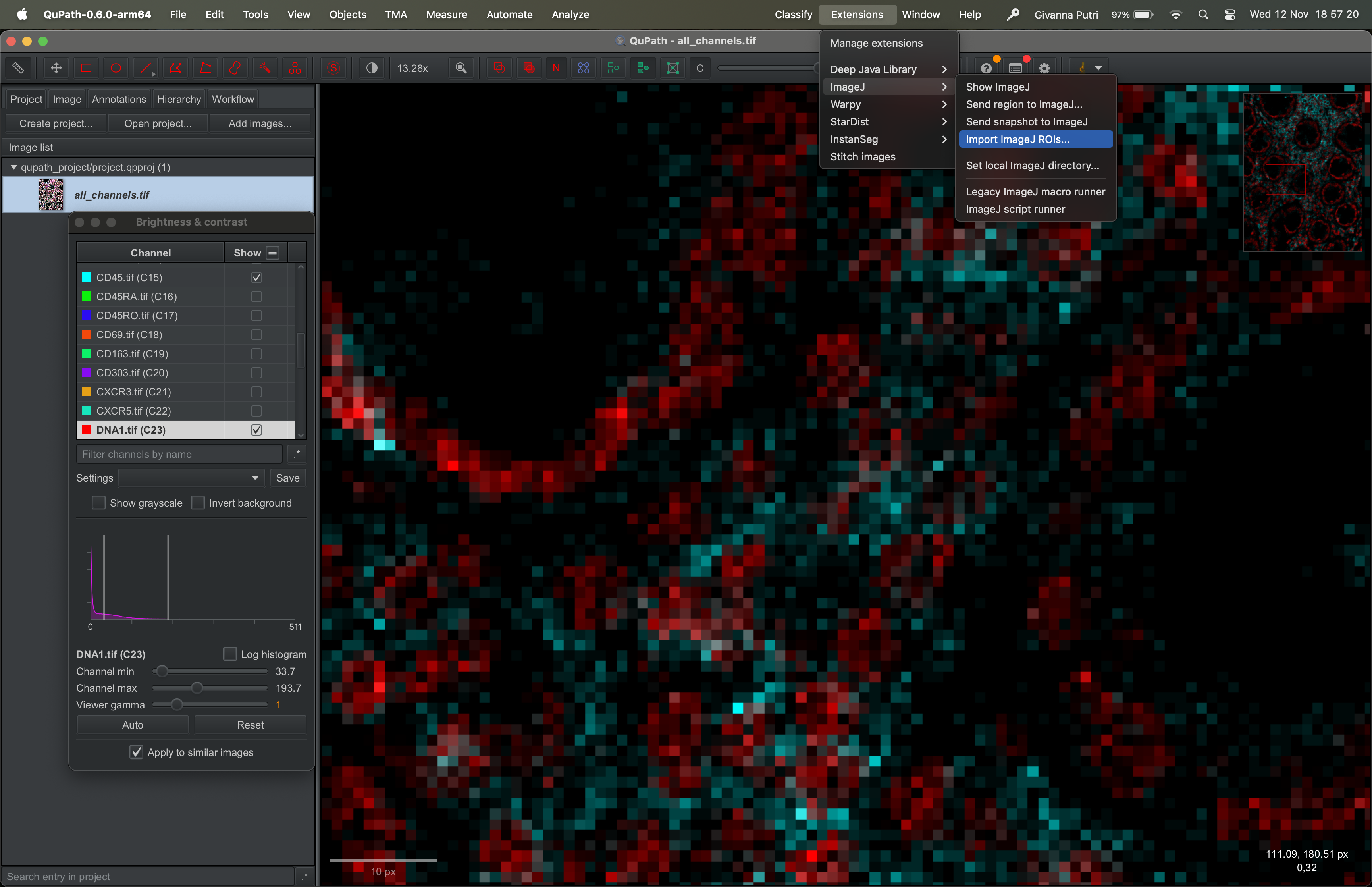

Go to Extensions → ImageJ → Import ImageJ ROIs.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

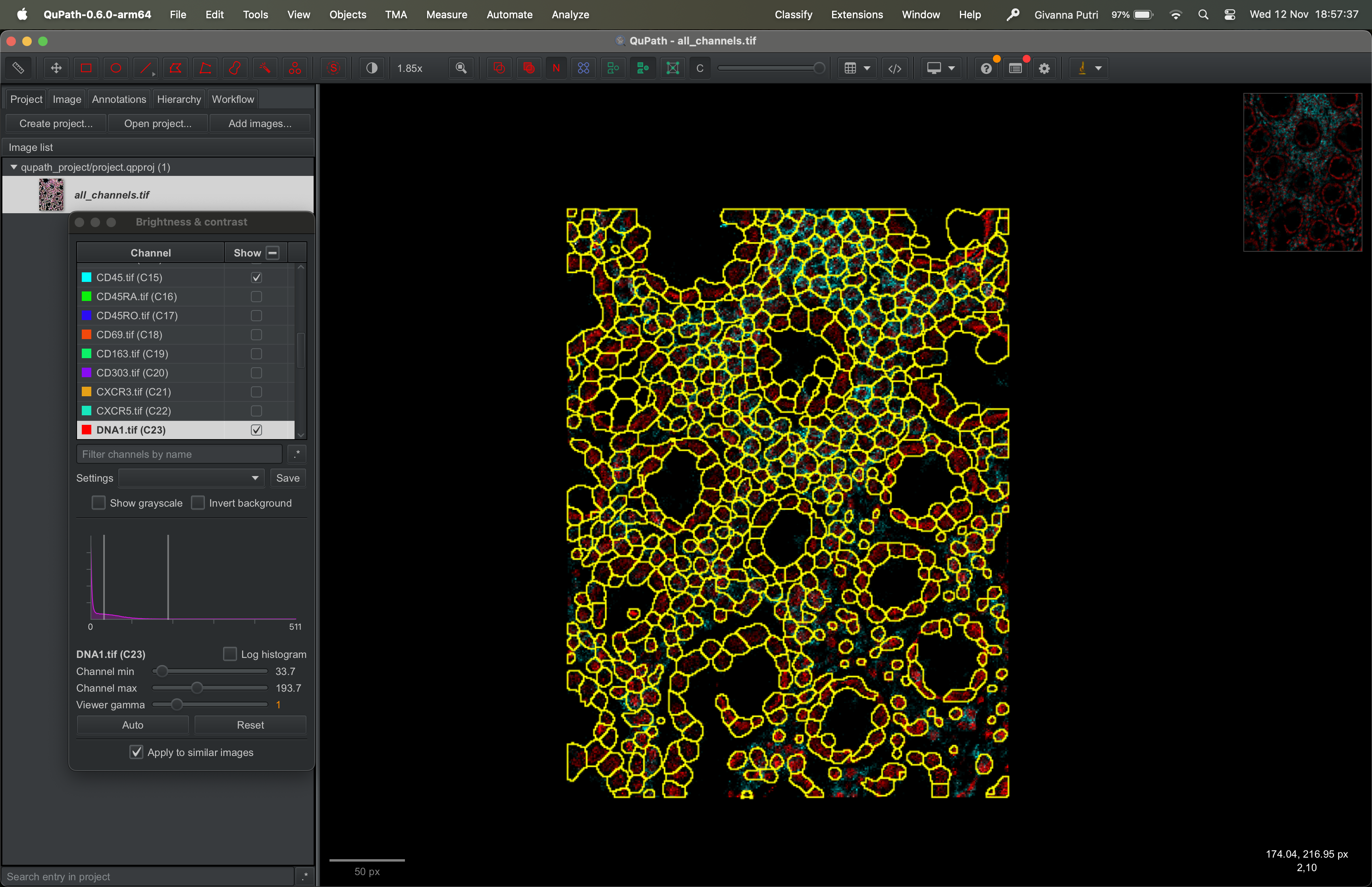

Select the zip file we exported from ImageJ and click ok. You should now get the segmentation masks overlaid over the image.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Manually modifying segmentation masks using Qupath
We can now scrutinise this segmentation result. Toggle few channels and see how it looks. Zoom in and out the tissue.

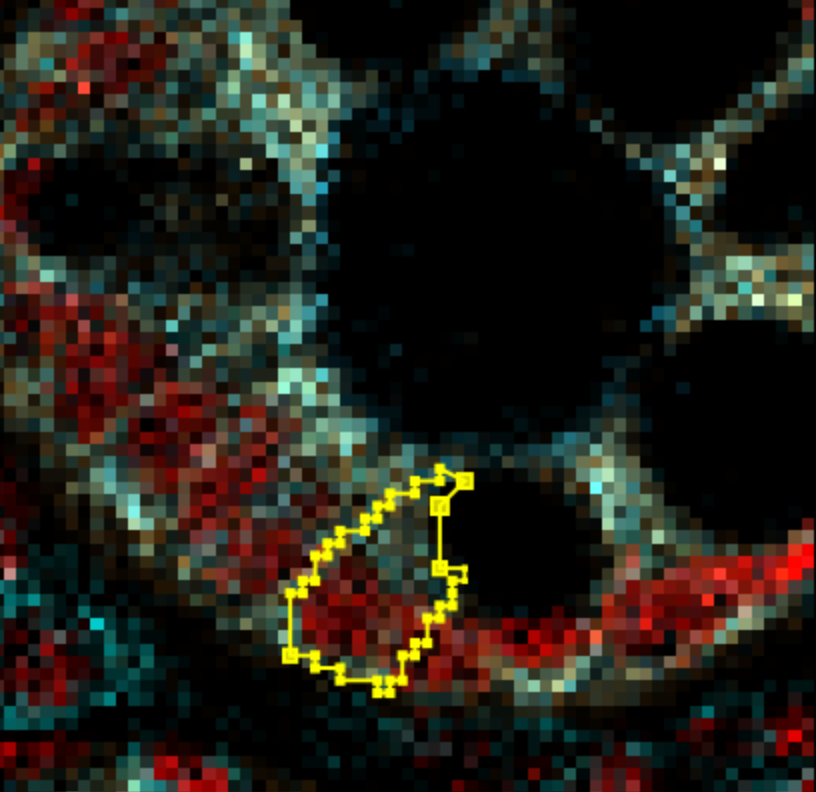

If you find a weird or just plain wrong segmentation, like below where we have cells missing DNA (red) - double clicking on a cell should focus on it. You can delete it by just pressing the delete key.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

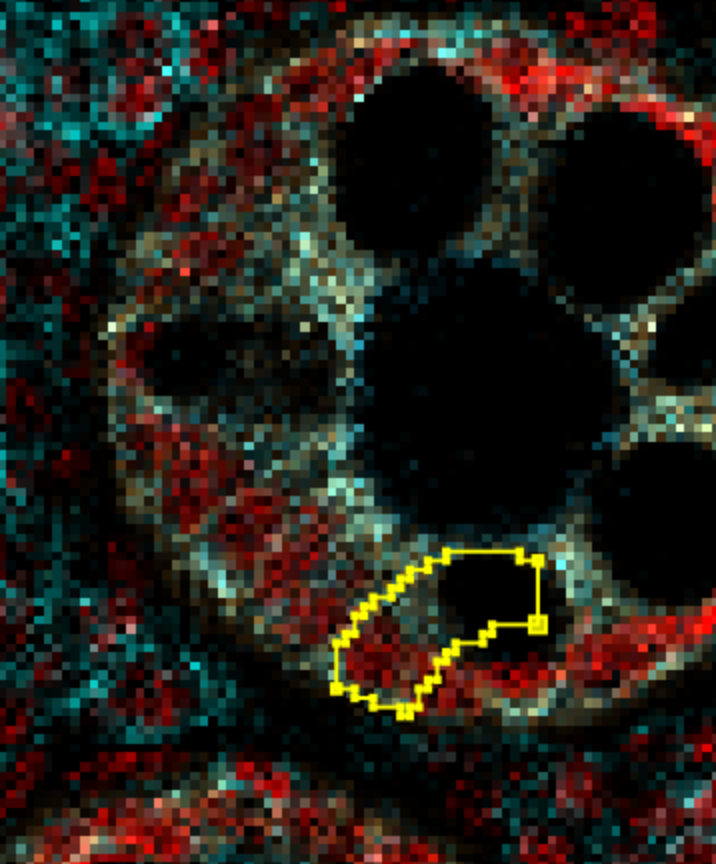

Or if you get an overzealous one like the one below, you can select it by double clicking and drag the nodes around to reshape it.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

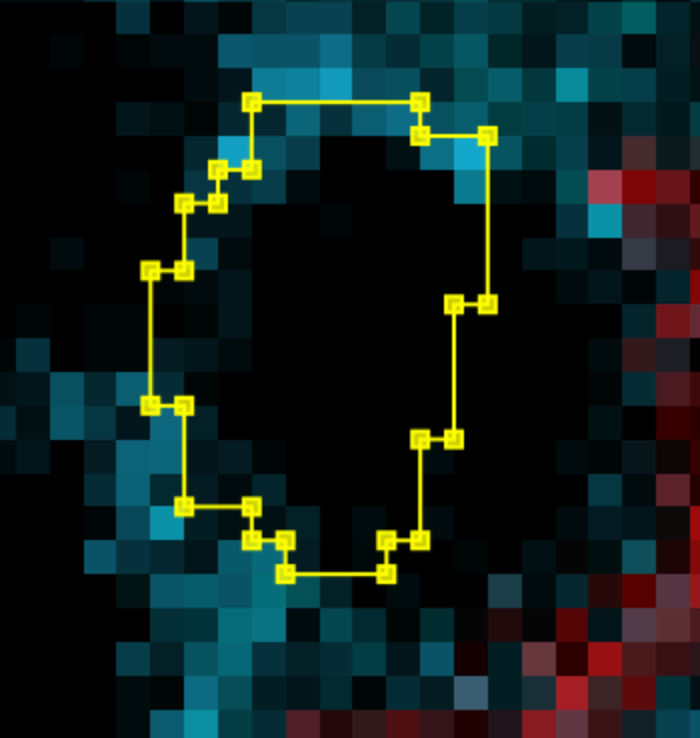

Qupath should automatically merge the nodes or create new ones as you drag them around.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Exporting segmentation masks
To do any downstream analyses using R, we need to export the segmentation masks out into a csv file that we can read in using R.
Measuring channel intensity
To do this, we need to first get Qupath to measure the intensity of each channel.
First, go to Annotations tab on the menu panel on the left and click select all.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

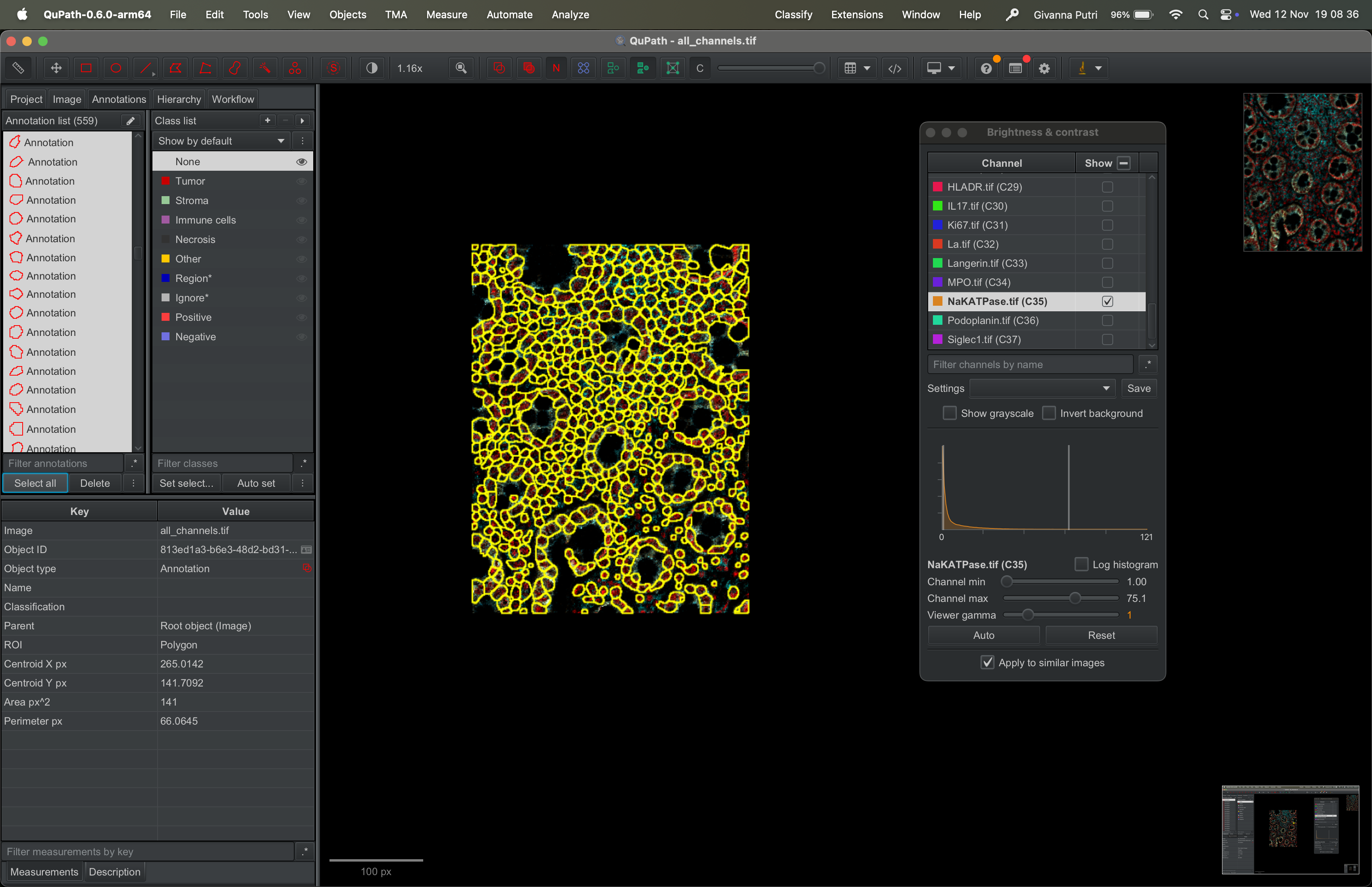

This should select all segmentation masks, like so.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

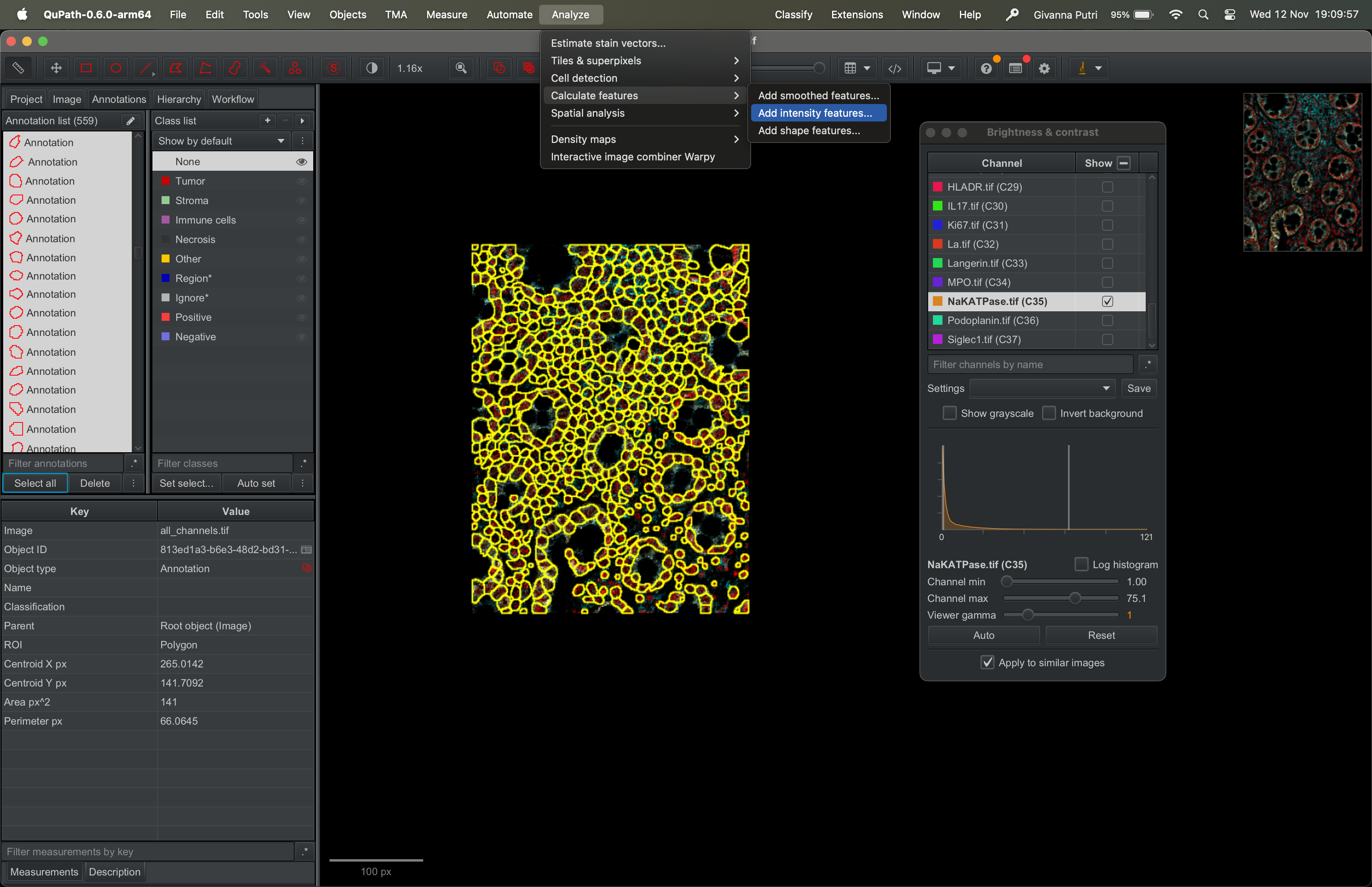

Go to Analyze → Calculate Features → Add intensity features.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

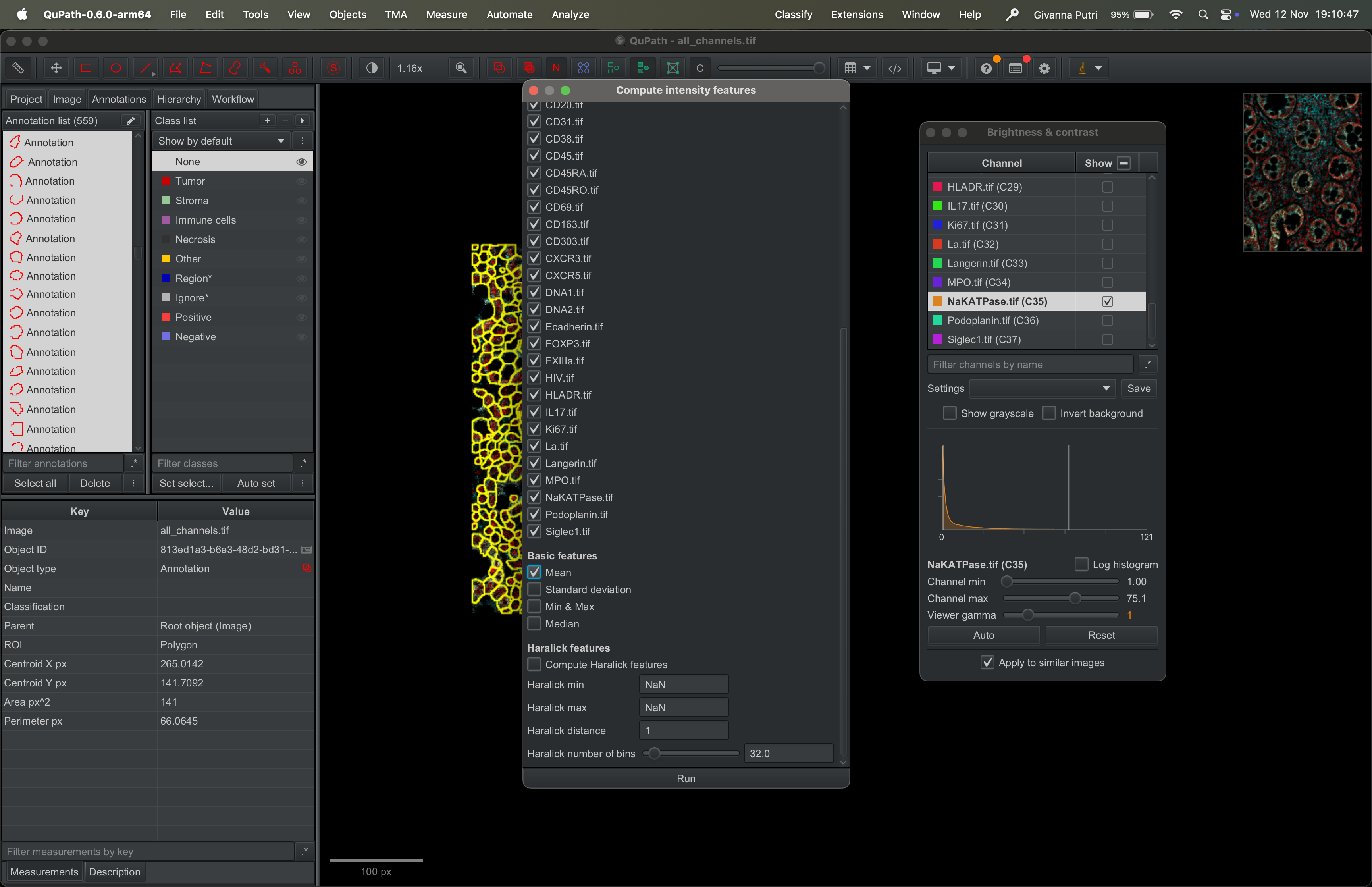

Tick all the channels one after another. Scroll down and select mean.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
This tells Qupath to export out the mean intensity for each mask. There are other options, median, SD, min & max. If you want you can select more than one options. Then hit run.

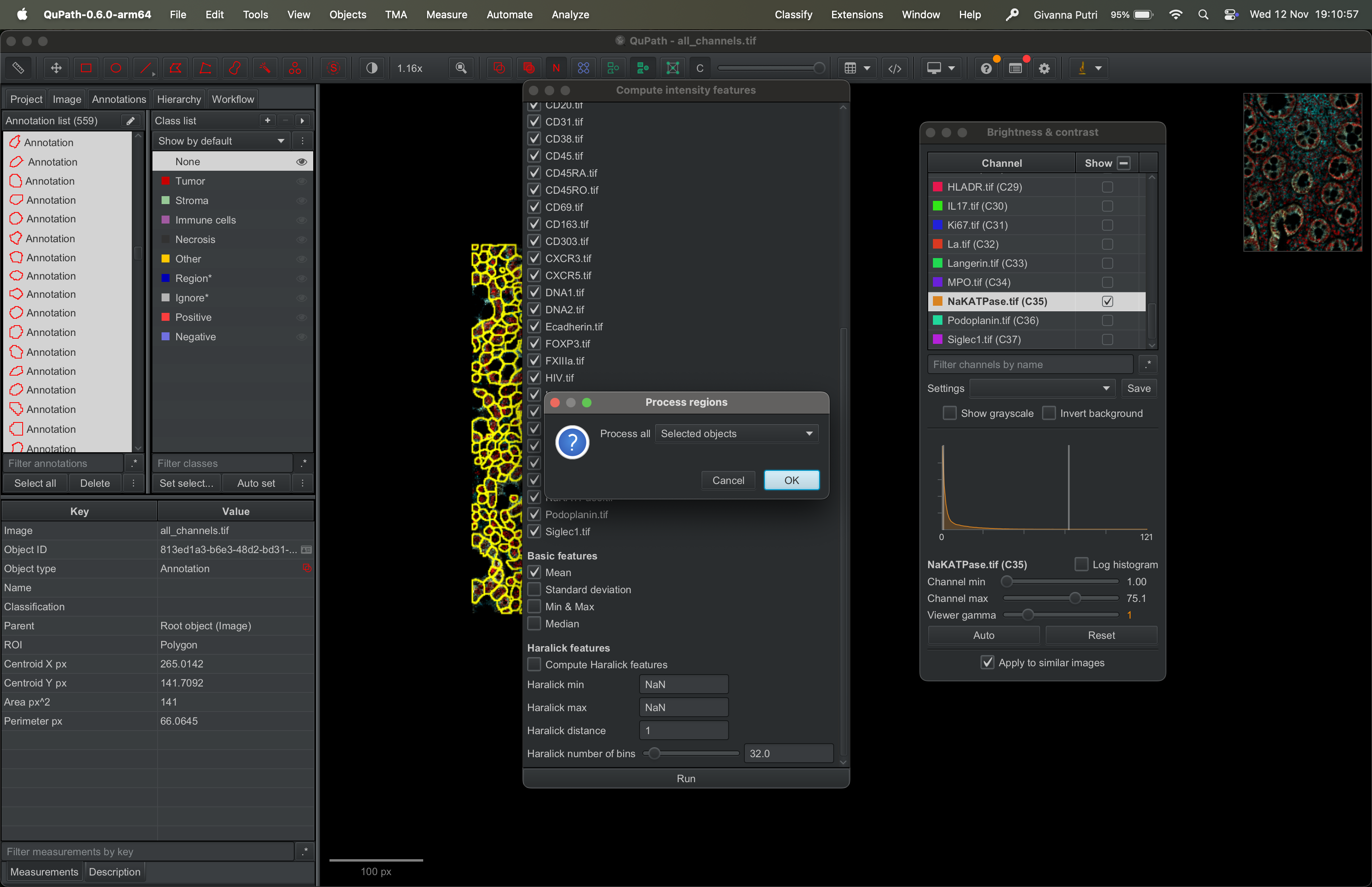

It will then ask you to what to process, select “Selected objects” then click ok.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

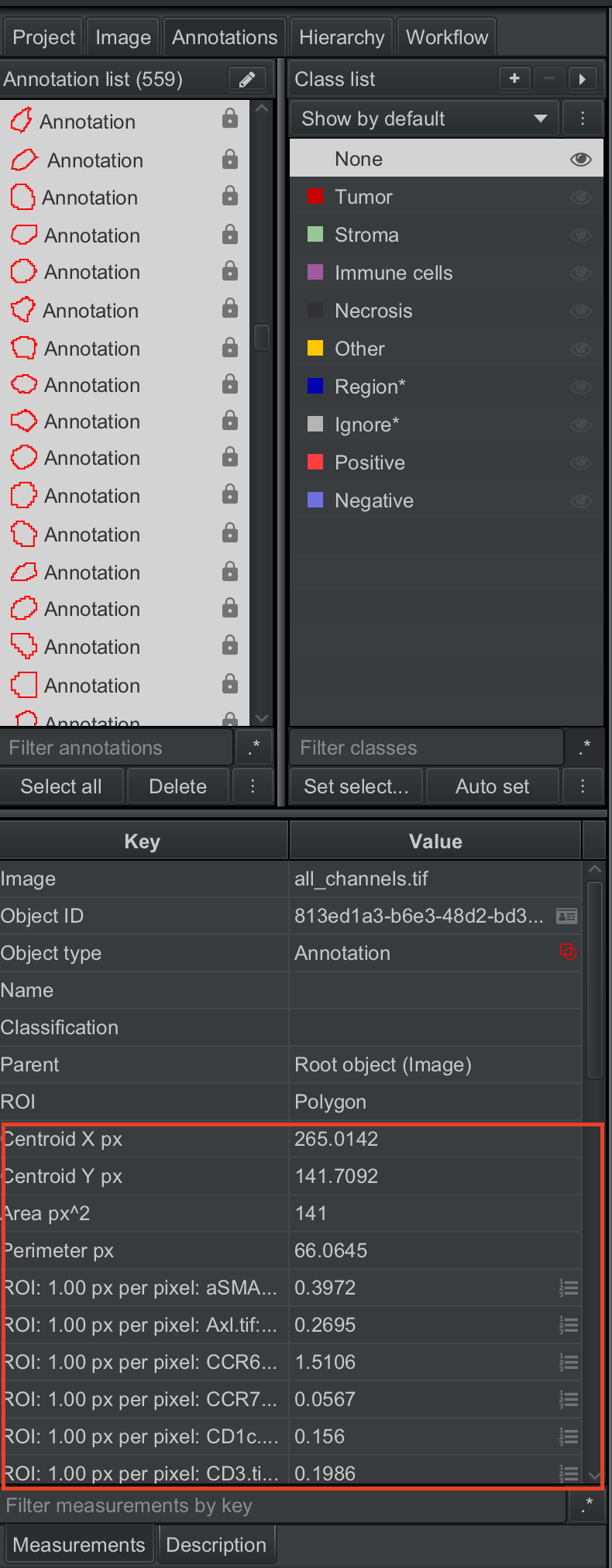

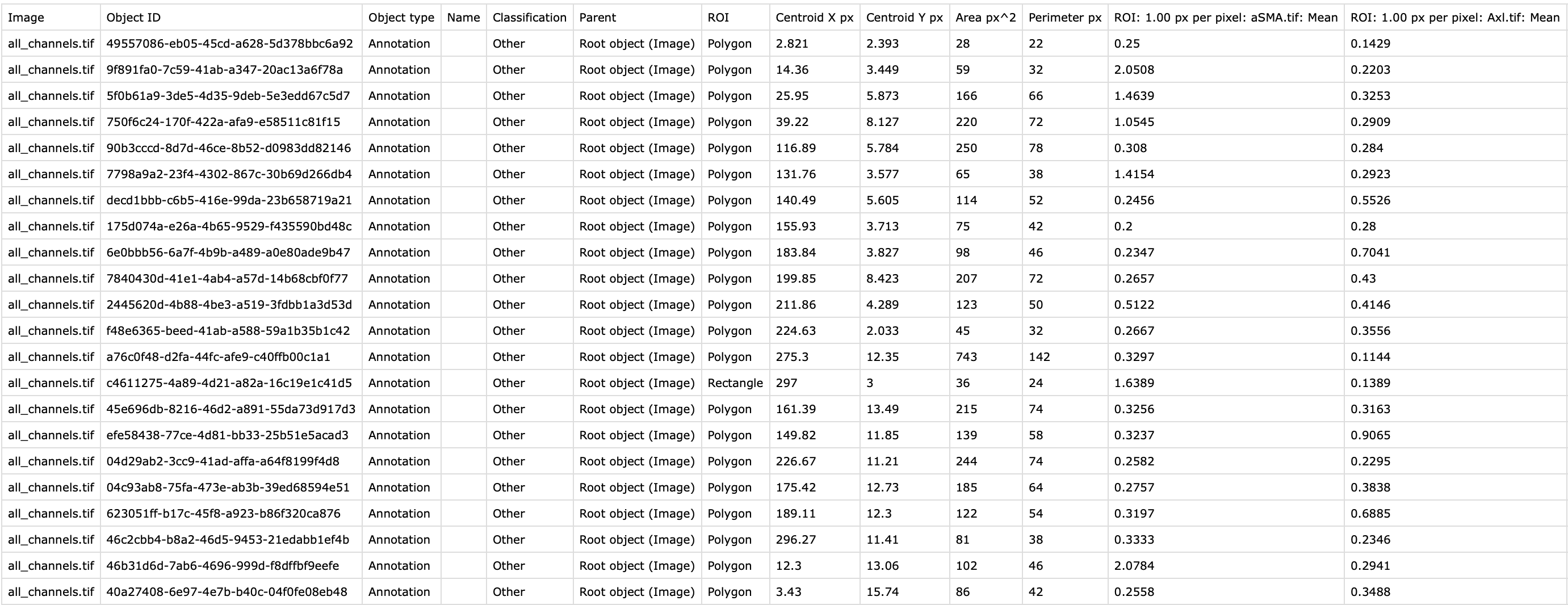

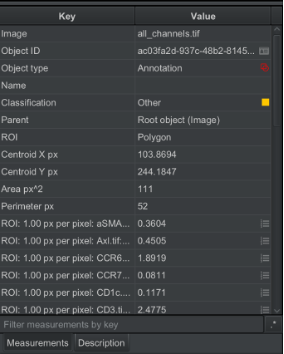

When it finishes, the panel at bottom left should be populated with intensity measurements for all channels.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Annotating masks
When exporting masks, QuPath needs to know what masks to export. To tell it this, we need to assign an annotation to the masks.

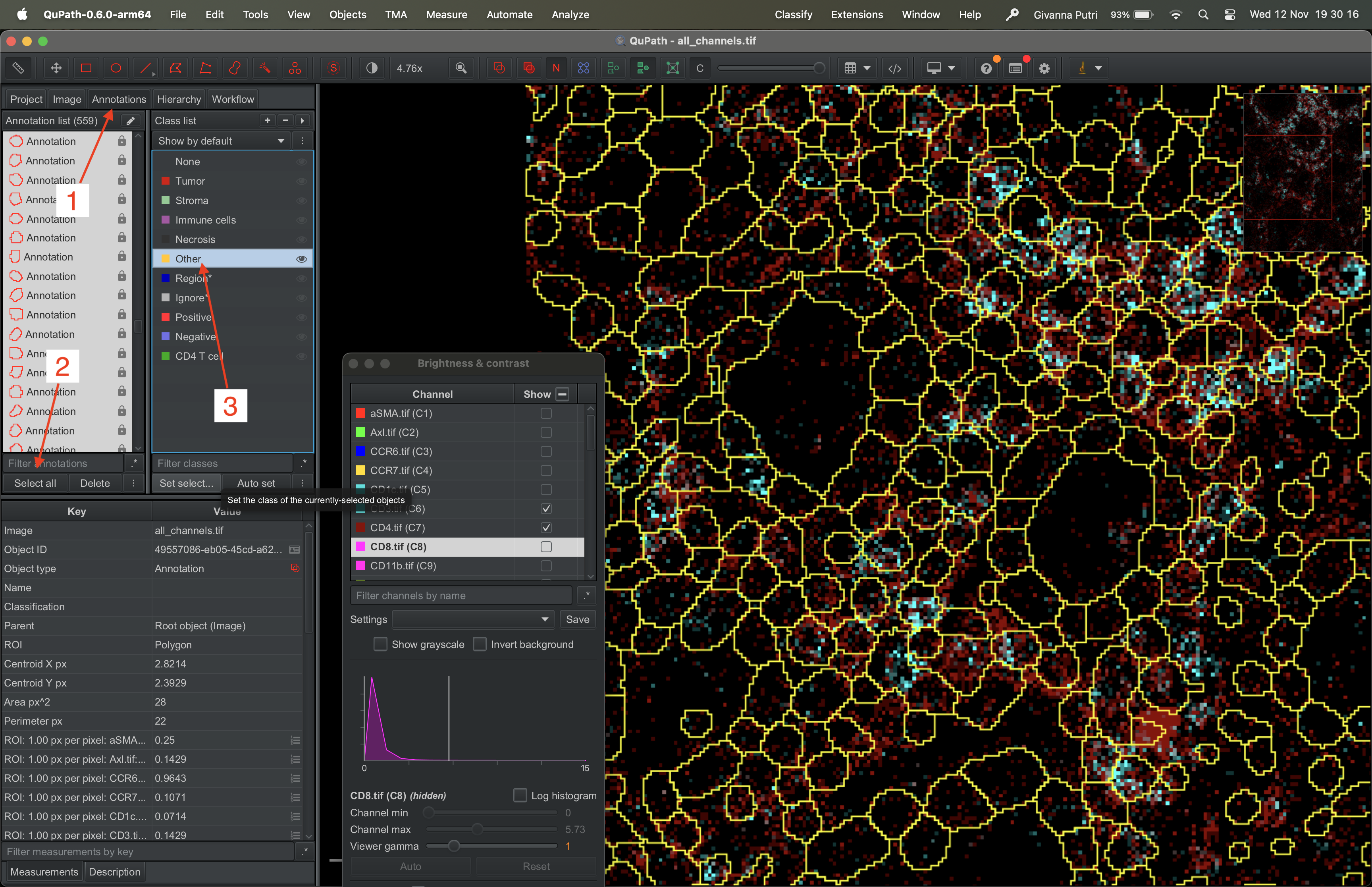

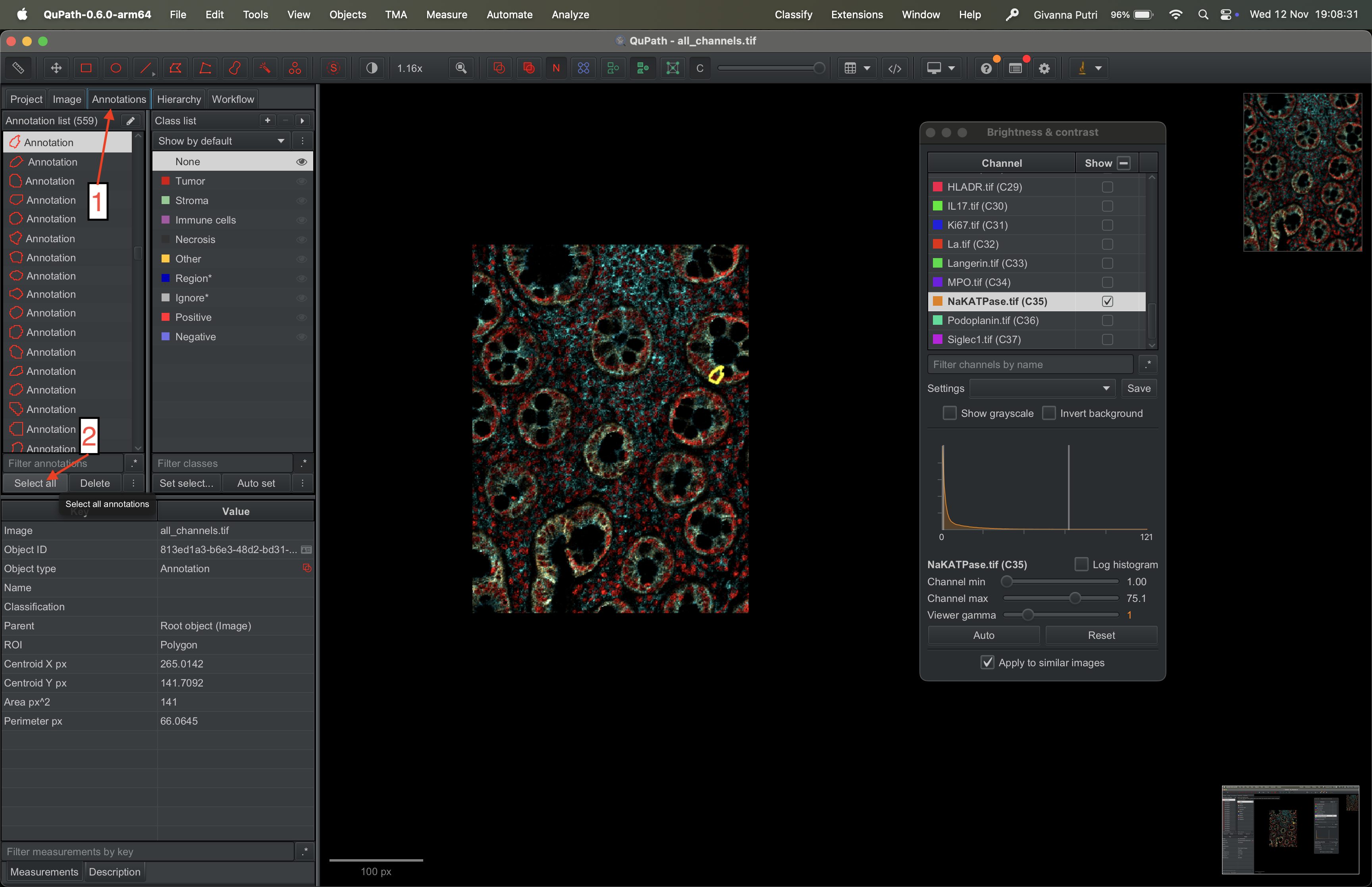

Go to Annotations tab on the left panel, click “Select all” button on the Annotation list panel (like before). It shall highlight all the masks. Then pick “Other” on the class list panel and click “Set select…” button in the panel.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

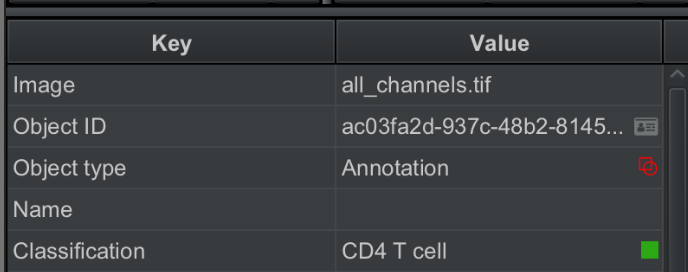

You should then see in the bottom left panel the classification row will say “other”.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
You can also of course, annotate your cells by flicking through various channels, selecting individual masks and annotate them. BUT! This is best done using more traditional high dimensional approach.
However if you prefer to do it using Qupath..

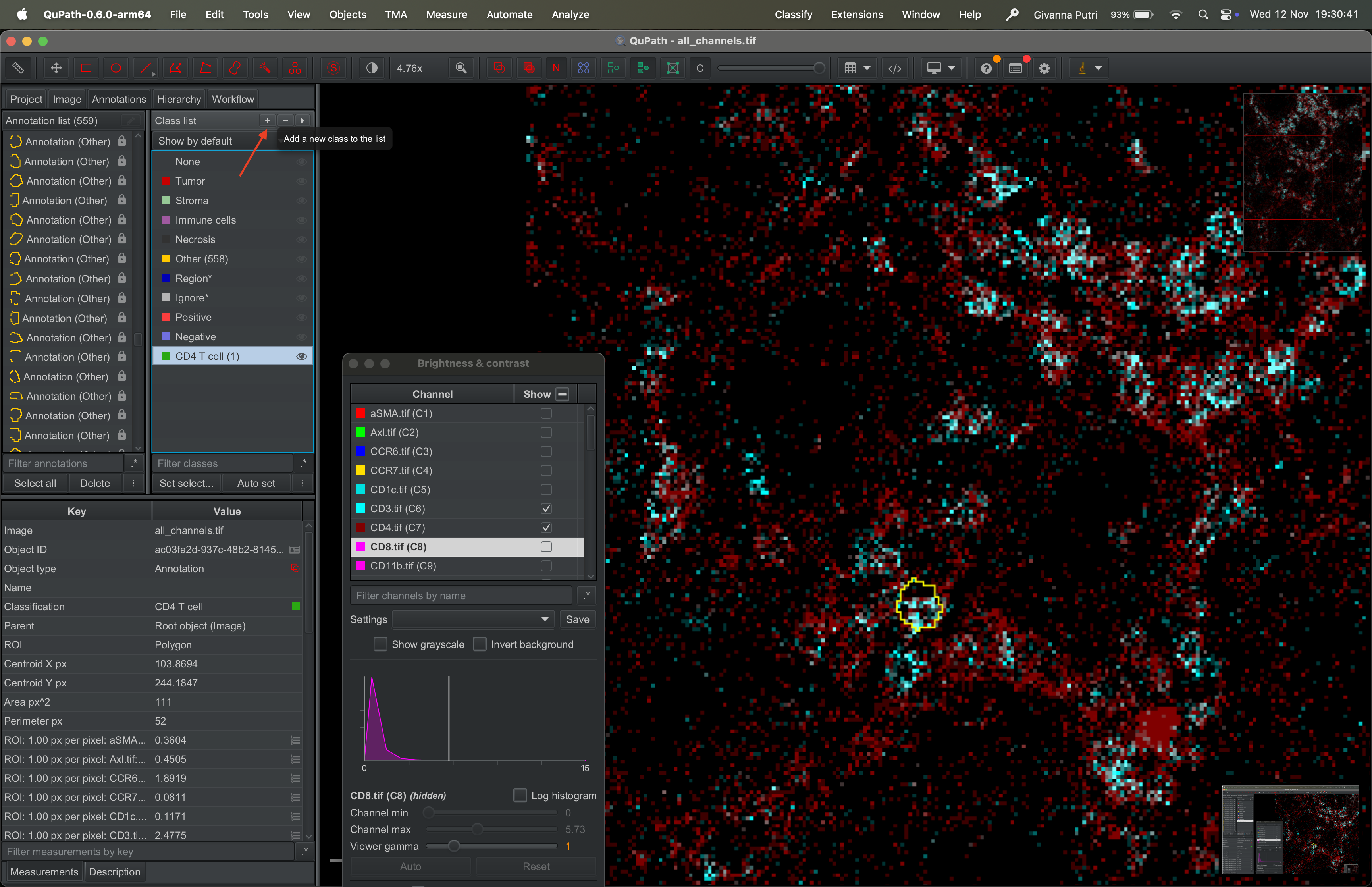

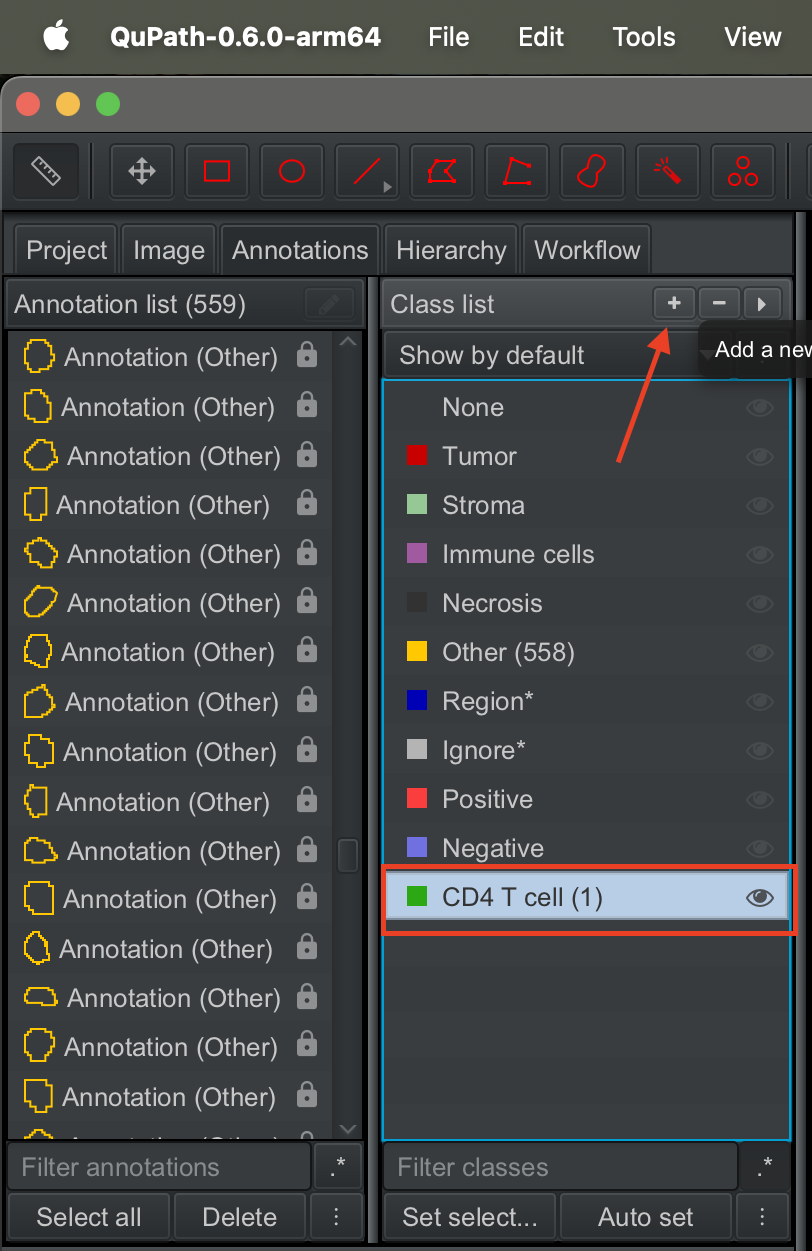

On the class list panel, click on the + button to create a new label. Say CD4 T cell.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

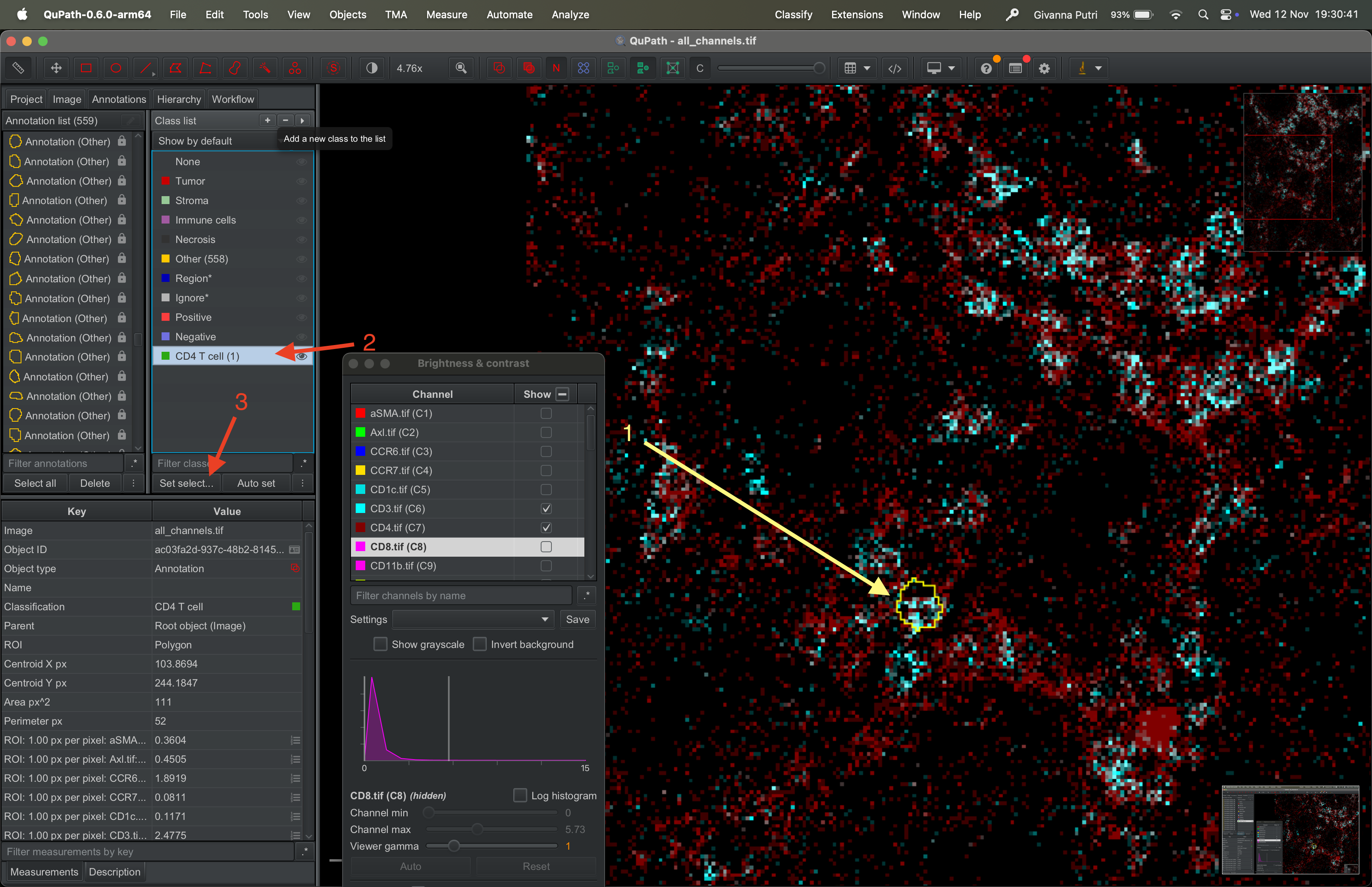

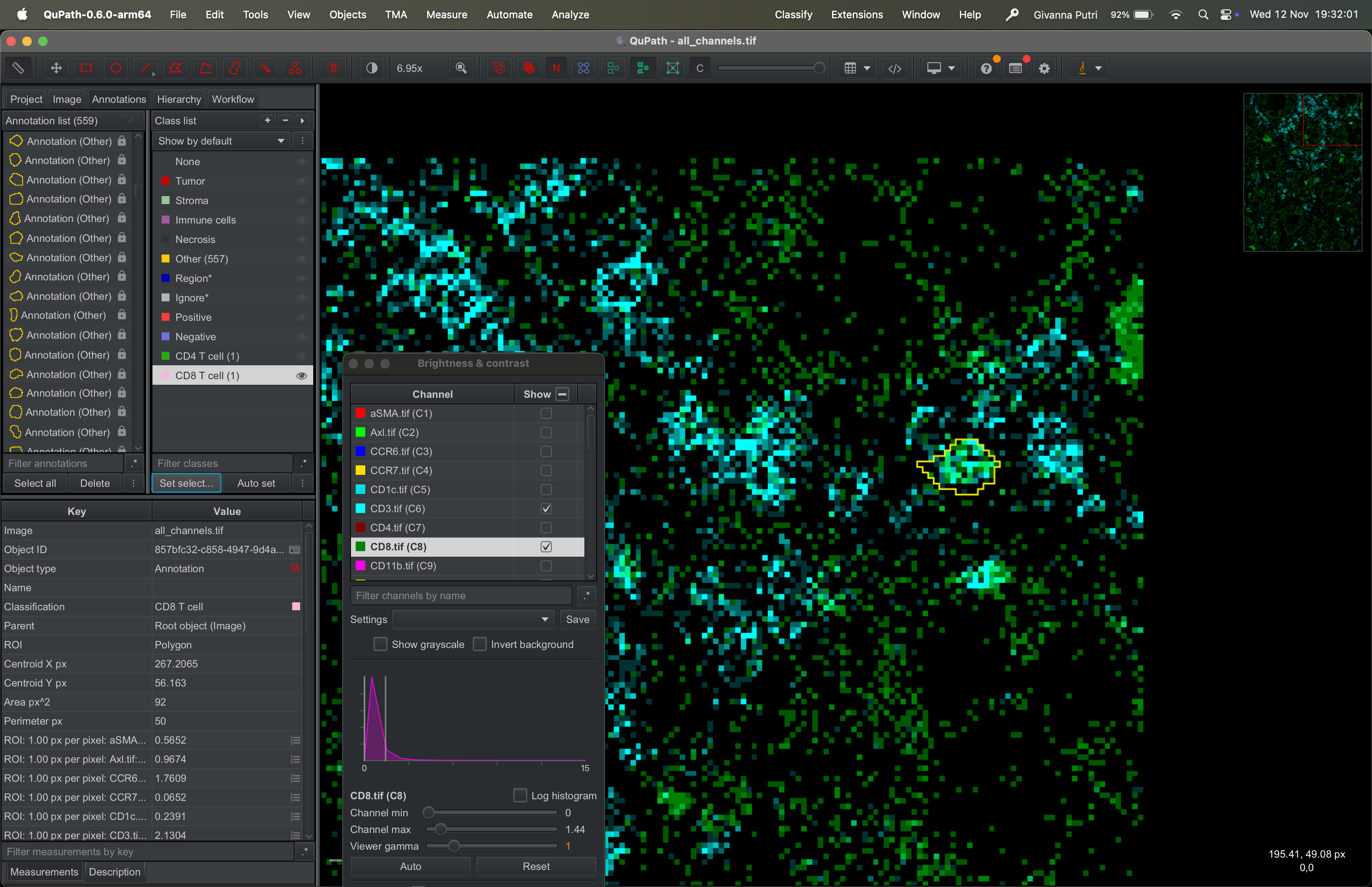

Select a mask that you think represents CD4 T cell. Then select the CD4 T cell class in the class list, then click set selected.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Then panel on the bottom left, should show CD4 T cell in the
classification row.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
We can repeat for different class, say CD8 T cell.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
Export the masks
Now we can finally export the masks.
Click “Select all” in the annotation list panel on the left, just like before. Go to Measure → Export measurements.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

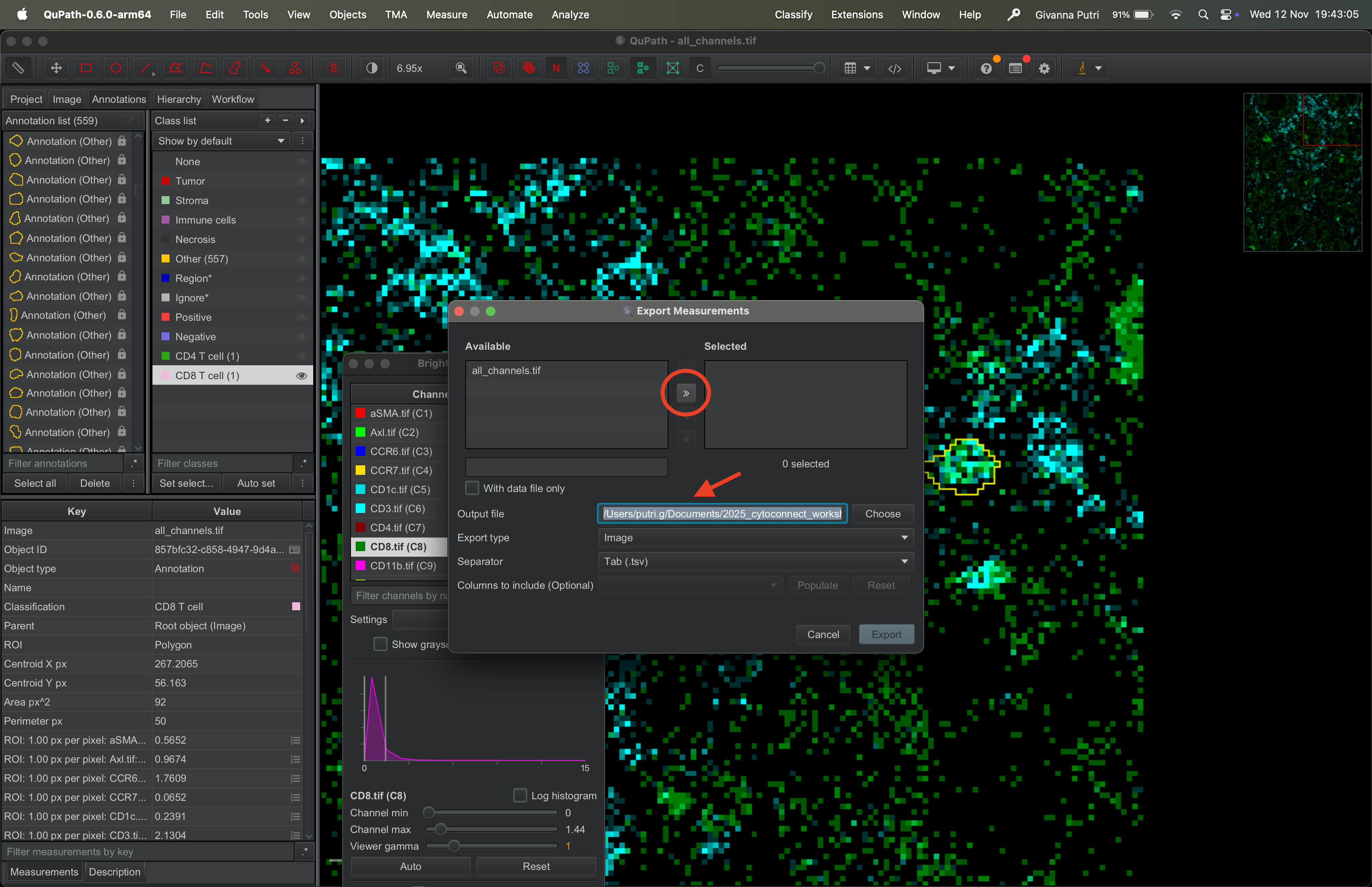

Select the tif file on the available panel on the left and click >> to transfer it to the right panel. Set the output file to whatever the filename you want to export it to.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |

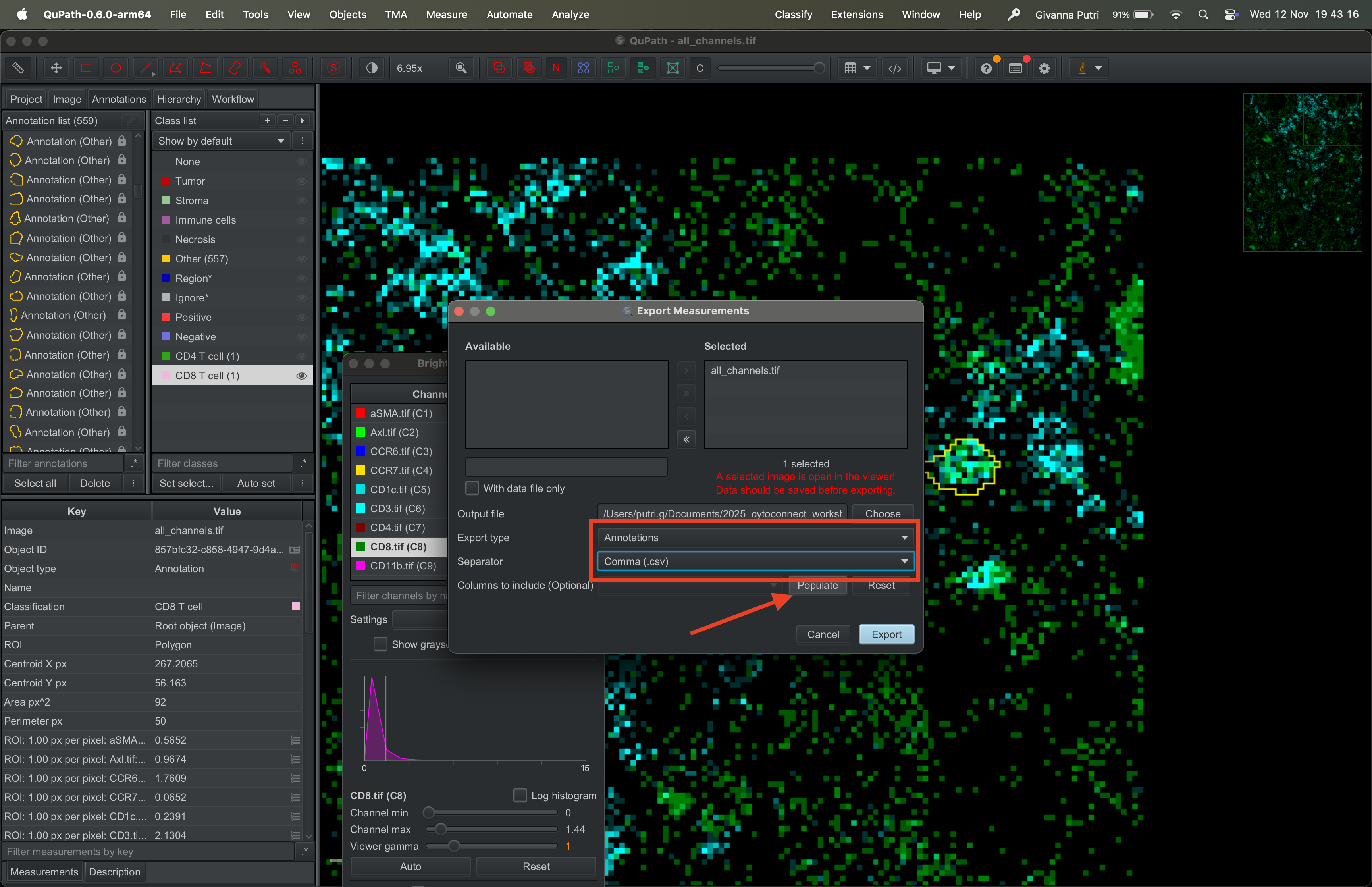

Select “Annotations” as “Export type”, and csv as “Separator”. Then click Export.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
You should now have a csv file like this that you can now export to R.
| Version | Author | Date |
|---|---|---|
| d3e5d04 | Givanna Putri | 2025-11-26 |
sessionInfo()R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.5
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Australia/Perth
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] workflowr_1.7.2
loaded via a namespace (and not attached):
[1] vctrs_0.6.5 httr_1.4.7 cli_3.6.5 knitr_1.50
[5] rlang_1.1.6 xfun_0.53 stringi_1.8.7 processx_3.8.6
[9] promises_1.3.3 jsonlite_2.0.0 glue_1.8.0 rprojroot_2.1.1
[13] git2r_0.36.2 htmltools_0.5.8.1 httpuv_1.6.16 ps_1.9.1
[17] sass_0.4.10 rmarkdown_2.29 jquerylib_0.1.4 tibble_3.3.0
[21] evaluate_1.0.5 fastmap_1.2.0 yaml_2.3.10 lifecycle_1.0.4
[25] whisker_0.4.1 stringr_1.5.2 compiler_4.5.1 fs_1.6.6
[29] pkgconfig_2.0.3 Rcpp_1.1.0 rstudioapi_0.17.1 later_1.4.4
[33] digest_0.6.37 R6_2.6.1 pillar_1.11.0 callr_3.7.6
[37] magrittr_2.0.4 bslib_0.9.0 tools_4.5.1 cachem_1.1.0
[41] getPass_0.2-4
